Oil Separators Filters

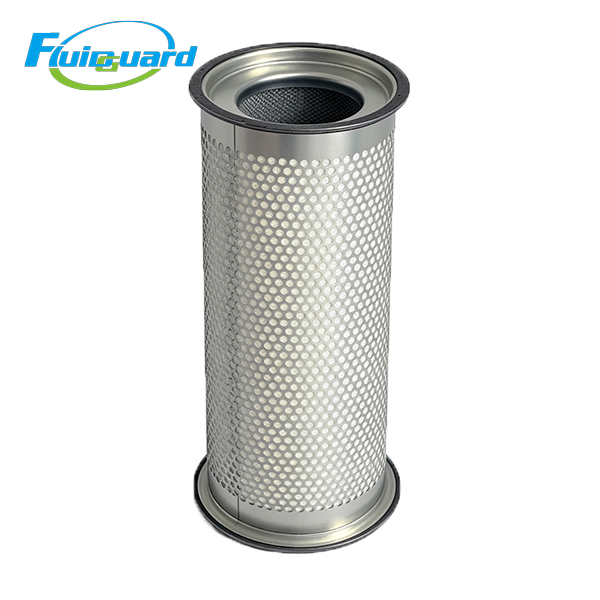

Part No: 010452250

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Blue Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–5200 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 3.1 kg

Dimensions

Cartridge Outer Diameter: 168 mm

Flange Outer Diameter: 242 mm

Central Inner Hole Diameter: 102 mm

Overall Height: 286 mm

Application Scenarios

Medium metal machining workshops, automotive component manufacturing, plastic injection molding, textile factories, medium-sized industrial central compressed air stations

Product Features

Multi-layer dense HV ultra-fine borosilicate glass fiber media with large oil mist holding capacity, stable coalescing performance under long-term continuous medium-heavy industrial load.

Optimized uniform deep-pleated low-resistance layout with ultra-low initial pressure drop, slow differential pressure rise during long-cycle operation to effectively reduce power consumption of medium screw compressors.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion, shock resistant, no deformation or collapse under high differential pressure.

Multi-hole flat steel flange equipped with wide-temperature resistant composite sealing gasket, reliable sealing against dramatic day-night temperature fluctuations to eliminate oil bypass and over-limit residual oil in outlet compressed air.

Product Description

It adopts advanced HV borosilicate glass fiber coalescing technology to capture ultra-fine lubricant aerosol suspended in compressed air, controlling residual oil content of outlet compressed air below 3 ppm.It delivers comprehensive protection for downstream air dryers, precision pneumatic actuators and air transmission pipelines, drastically reduces lubricating oil refilling frequency, supplies ultra-clean stable compressed air, and extends the full service cycle of the whole compressor unit and all supporting post-processing accessories.
