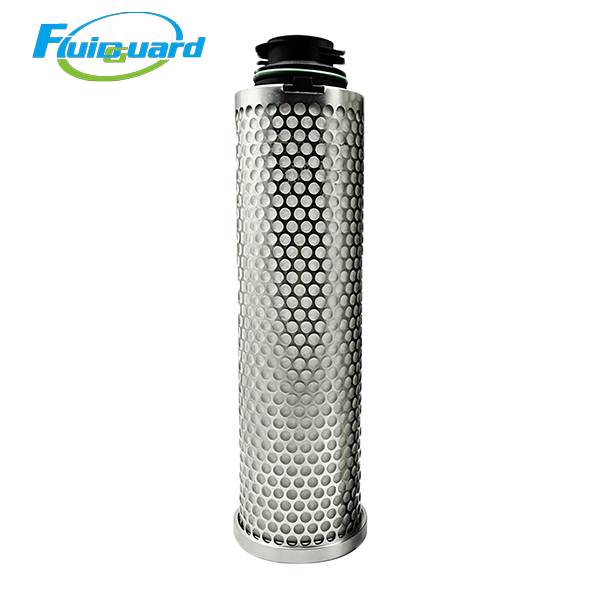

1625390494 Air Oil Separator

Model : 1625390494

Type : Oil Separators Filters

Replacement for : 1625390494

1625390494 air oil separator element is core wearing filter part for screw air compressors. It adopts multi-layer imported gradient superfine glass fiber composite media, thickened anti-rust carbon steel frame and integrated epoxy full sealing. With outside-in airflow design, it efficiently captures

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part Number: 1625390494

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000 Working Hours

Initial Pressure Drop: ≤0.02MPa

Outlet Residual Oil Content: ≤3PPM

key product features

High separation precision, outlet residual oil ≤3PPM, meets clean air standards of precision pneumatic equipment;

Deep folding increases filter area greatly with low air resistance, initial pressure drop ≤0.02MPa for long-term energy saving;

Gradient layered filter media has large dirt holding capacity, service life 3500–6000 working hours to cut frequent replacement cost;

High temperature & oil corrosion resistance, compatible with all kinds of compressor oil, anti-aging and anti-damage under high temp & pressure;

Integral leak-proof sealing, pressure-resistant non-deformable frame, explosion-proof and durable, easy and time-saving for installation;

Block oil contaminants to protect rear pipelines, cylinders, pneumatic valves and precision instruments, lower equipment maintenance frequency.

Application Range

Compatible with full set screw air compressors, widely applied in air-oil separation & purification systems of machinery processing, auto manufacturing, chemical, power, metallurgy, textile, food & pharmaceutical, refrigeration industries.
