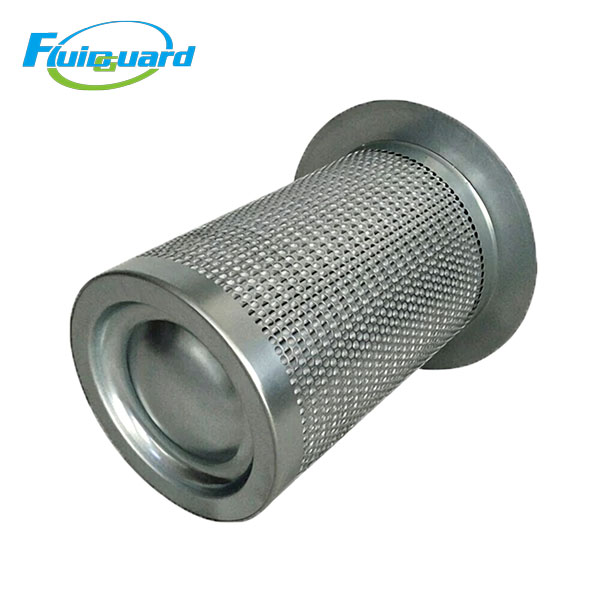

1092081300 Air Oil Separator

Model : 1092081300

Type : Oil Separators Filters

Replacement for : 1092081300

1092081300 air oil separator element is a core precision filter consumable for screw air compressors. It is made of multi-layer imported gradient superfine glass fiber composite filter media, matched with thickened anti-rust carbon steel support frame and integrally sealed with epoxy resin. Air flow

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part Number: 1092081300

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000 Working Hours

Initial Pressure Drop: ≤0.02MPa

Outlet Residual Oil Content: ≤3PPM

Key Product Features

High air-oil separation efficiency, outlet residual oil content ≤3PPM, meeting clean air standards of all kinds of precision equipment;

Star-folded design expands effective filter area with smooth airflow, initial pressure drop ≤0.02MPa to save power during long-time running;

Multi-layer gradient filter media features large dirt holding capacity, standard service life 3500–6000 working hours to reduce frequent replacement cost;

High temperature and oil corrosion resistance, compatible with various special compressor lubricants, anti-aging and anti-cracking under high temperature & pressure working conditions;

Fully sealed by integral epoxy filling without air or oil leakage, pressure-resistant non-deformable frame, explosion-proof and safe, simple to install and replace;

Effectively block oil contaminants, protect rear pipelines, cylinders, pneumatic valves and precision gauges, lower equipment maintenance frequency.

Application Range

Fully compatible with screw air compressor units, widely used in air source purification and air-oil separation systems for machinery processing, automobile manufacturing, chemical industry, power plants, metallurgy, textile, food & pharmaceutical, refrigeration and other industries.
