Oil Separators Filters

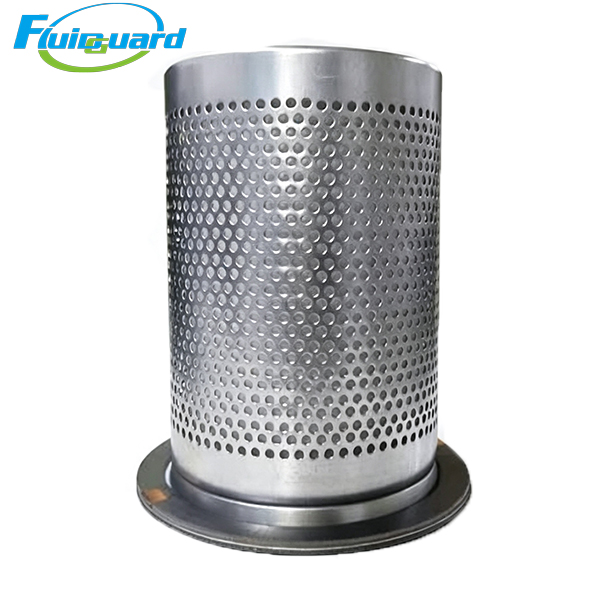

Part No: 1625185623

Product Name: Flange Type Built-in Air Oil Separator Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature fluororubber

Main Features

Large flange integrated structure, precise hole position matching, stable installation

Multi-stage high-efficiency coalescing medium, excellent capture performance for submicron oil mist particles

Reinforced inner and outer metal support cage, anti-deformation under long-term high airflow impact

High temperature resistant sealing gasket, effectively prevent air bypass and internal leakage

Low initial pressure drop, reduce energy consumption of large screw air compressor

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other large industrial compressed air stations.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.
