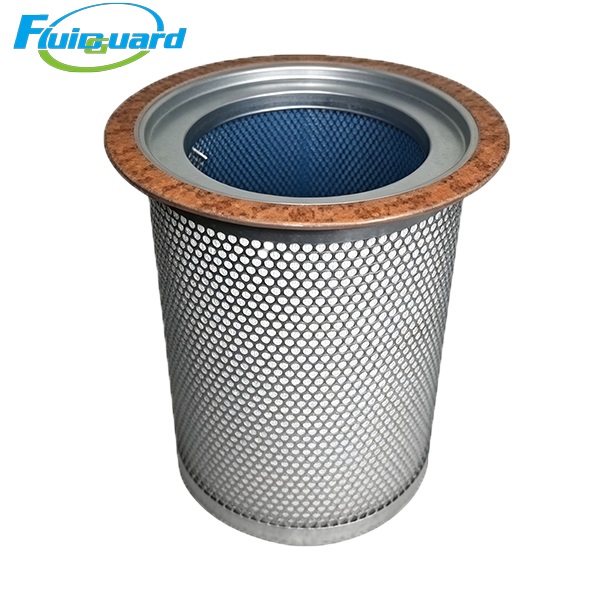

47739637001 Air Oil Separator Filter

Model : 47739637001

Type : Oil Separators Filters

Replacement for : 47739637001

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 47739637001

Product Name: Flange Mounted Air Oil Separator Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature fluororubber

Main Features

Flange integrated structure, accurate positioning, convenient installation and disassembly

Multi-stage high-efficiency coalescing filter material, excellent trapping performance for submicron oil mist particles

Reinforced inner and outer metal support cage, resistant to deformation under long-term high airflow impact

High temperature resistant sealing gasket, effectively prevent air bypass and internal leakage

Low initial pressure drop, reduce power consumption of screw air compressor

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air systems.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.
