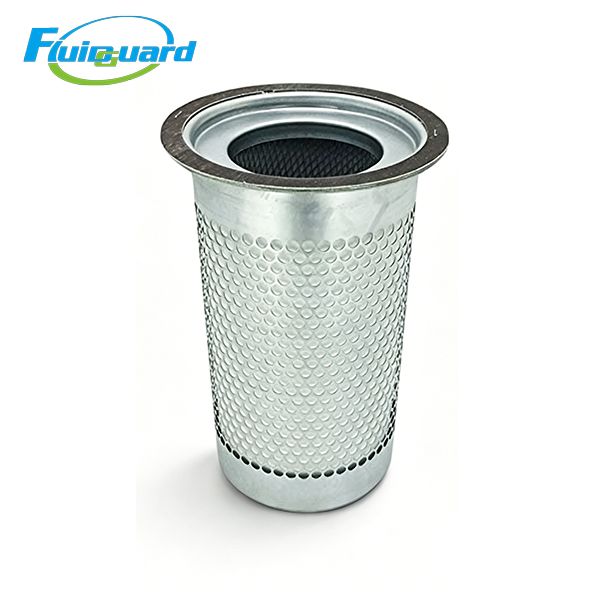

Oil Separators Filters

Part No: 10451050

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite coalescing media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3500–5000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 2.7 kg

Dimensions (mm)

Flange Outer Diameter: 212

Cartridge Outer Diameter: 154

Central Inner Hole Diameter: 94

Overall Height: 258

Application Scenarios

Automotive parts processing, medium machining workshops, plastic injection molding, electronic assembly lines, food and beverage production, medium factory central compressed air supply stations

Product Features

Multi-gradient high-density borosilicate glass fiber filter media with large oil mist storage capacity, effectively avoiding oil saturation under long-term medium-heavy continuous load and keeping stable separation efficiency during the whole service cycle.

Uniform deep-pleated low-flow-resistance design with ultra-low initial pressure drop; the differential pressure rises slowly during full-cycle operation, which can effectively reduce power consumption of medium-power screw compressors.

Double-layer fully perforated galvanized anti-static inner and outer support cages, anti-corrosion and resistant to pressure fluctuations; filter material will not collapse under long-term full-load operation. Anti-static structure eliminates hidden danger of static ignition in oil mist environment.

Matched high-temperature composite gasket maintains stable sealing under sharp temperature changes day and night, preventing oil bypass and excessive residual oil in compressed air.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-level lubricating oil mist mixed in compressed air, controlling the residual oil content of outlet air below 3 ppm. The separated lubricating oil flows back to the compressor host through the central oil return pipe for recycling, greatly reducing lubricant consumption.

It can fully protect downstream refrigerated dryers, adsorption dryers, precision pneumatic components and long-distance air pipelines, extend the maintenance cycle and overall service life of the complete compressor unit and post-processing purification equipment.
