02250193-595 Air Oil Separator

Model : 02250193-595

Type : Oil Separators Filters

Replacement for : 02250193-595

02250193-595 air oil separator element is special core filter consumable for Sullair screw air compressors. It adopts multi-layer imported gradient superfine glass fiber composite media, thickened anti-rust carbon steel support frame and integrated full epoxy sealing molding. With outside-in airflow

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

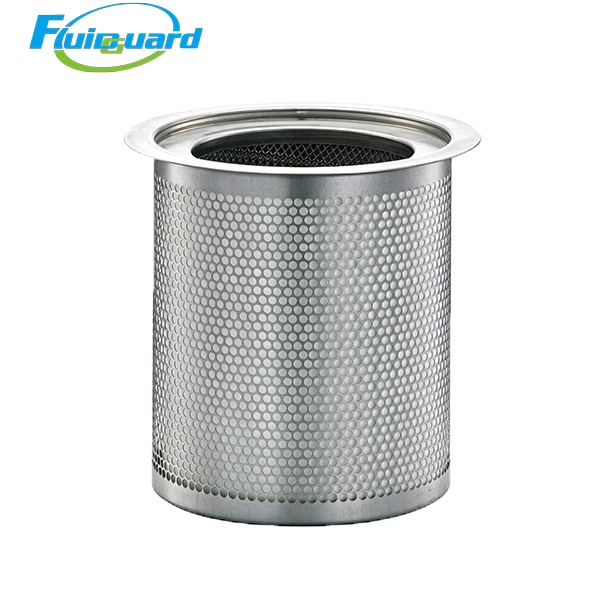

Model No: 1311125500

Product Type: Flange-mounted built-in air oil separator cartridge

Filter Media: Multi-layer gradient borosilicate glass fiber

Filtration Precision: 0.1μm

Separation Efficiency: 99.99%

Residual Oil Content: ≤3ppm

Initial Pressure Drop: ≤0.02MPa

Service Life: 3500–6000 working hours

Continuous Working Temperature: -20℃ ~ 120℃

Max Working Pressure: 1.6MPa

Key Product Features

Outstanding separation performance, outlet residual oil ≤3PPM, suitable for high-standard clean air supply of precision equipment;

Star-folded design expands filter area with low air resistance, initial pressure drop ≤0.02MPa for long-term energy saving;

Multi-layer gradient filter media with strong dirt holding capacity, service life 3500–6000 working hours to reduce replacement cost;

Full integral epoxy sealing without leakage, pressure-resistant non-deformable frame, explosion-proof and safe, easy to install and replace;

Block oil contaminants to protect rear pipelines, cylinders, pneumatic valves and precision gauges, lower unit maintenance frequency.

Application Range

widely used in air-oil purification separation systems of machinery processing, auto manufacturing, chemical, power plant, metallurgy, textile, food & pharmaceutical, refrigeration industries.
