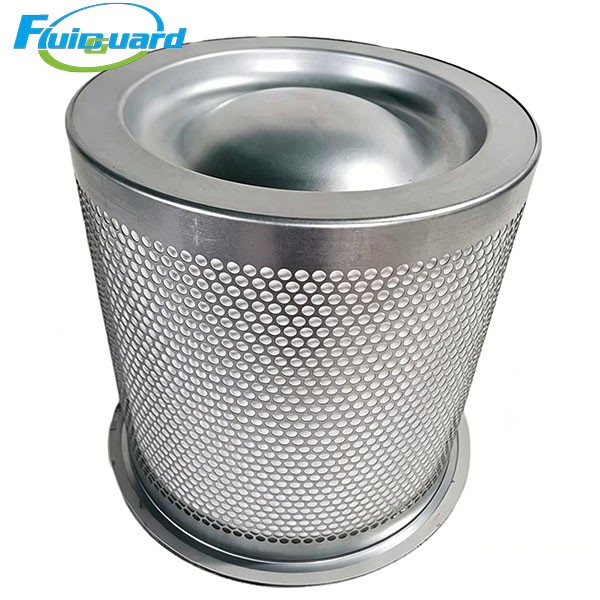

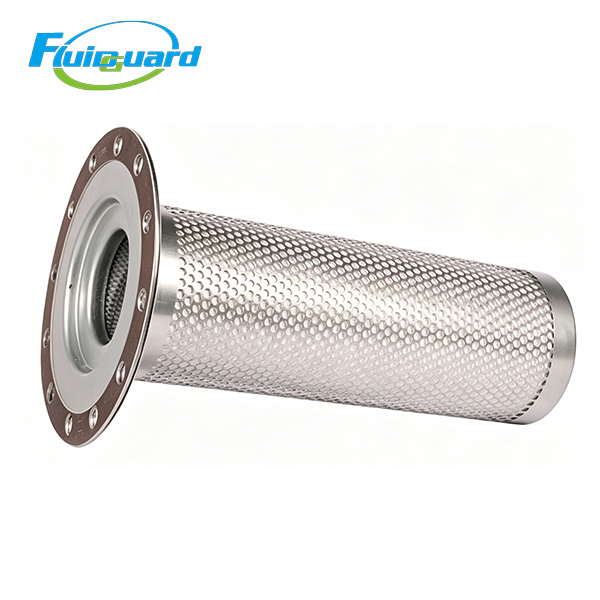

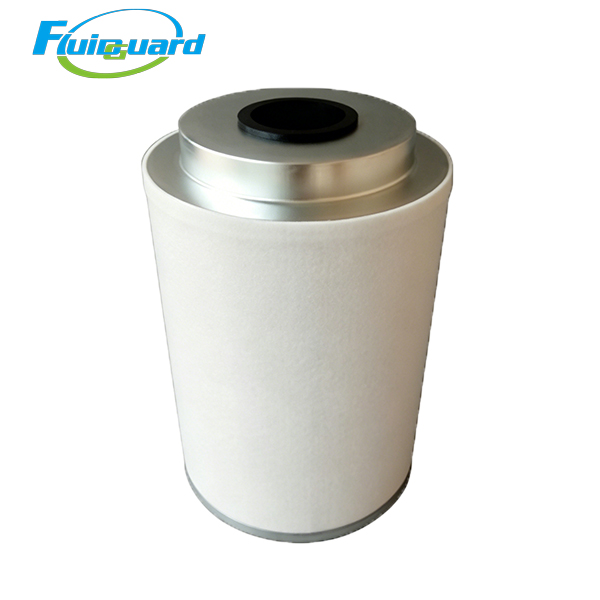

Oil Separators Filters

Part Number: 1311125500

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000 Working Hours

Initial Pressure Drop: ≤0.02MPa

Outlet Residual Oil Content: ≤3PPM

Key Product Features

High air-oil separation precision, outlet residual oil content ≤3PPM, perfectly suitable for high-standard air supply scenarios of precision pneumatic equipment;

Star-folded structure greatly expands effective filter area with smooth air circulation, initial pressure drop ≤0.02MPa to save power during continuous operation;

Multi-layer gradient filter media features large dirt holding capacity, standard service life of 3500–6000 working hours, cutting operation and maintenance cost caused by frequent replacement;

High temperature and oil corrosion resistance, excellent compatibility with all types of compressor lubricants, anti-aging and anti-cracking under long-term high temperature & pressure working conditions;

Full sealing with integral epoxy filling to avoid air and oil leakage, pressure-resistant non-deformable frame, explosion-proof and durable, easy and quick to install and replace;

Block oil contaminants to fully protect rear pipelines, cylinders, pneumatic valves and precision gauges, reduce maintenance frequency of the whole compressor unit.

Application Range

Compatible with all series of industrial screw air compressors, widely applied in air source purification and air-oil separation systems of machinery processing, auto manufacturing, chemical industry, power plants, metallurgy, textile, food & pharmaceutical, refrigeration and other industries.
