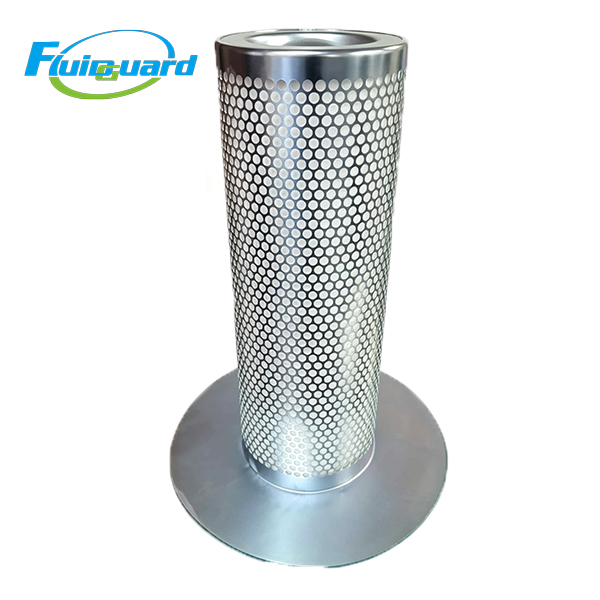

02250131-225 Oil Separators Filter

Model : 02250131-225

Type : Oil Separators Filters

Replacement for : 02250131-225

Removes oil mist from compressed air, reduces oil consumption, protects pneumatic equipment.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 02250131-225

Type: Primary coalescing separator

Media: HV borosilicate glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 240 mm

Height: 310 mm

Inner diameter: 115 mm

Weight: 6.3 kg

Service life: 4000 – 6000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application fields: Manufacturing, workshop, heavy industry

Features

OEM top-hat design, direct fit for Sullair LS series

High-efficiency HV glass fiber, low oil carry-over

Reinforced steel core & mesh, anti-collapse, long life

Low pressure drop, energy saving in continuous run

Complete with gasket & ground wire, easy installation

Description

Removes oil mist from compressed air, reduces oil consumption, protects pneumatic equipment.
