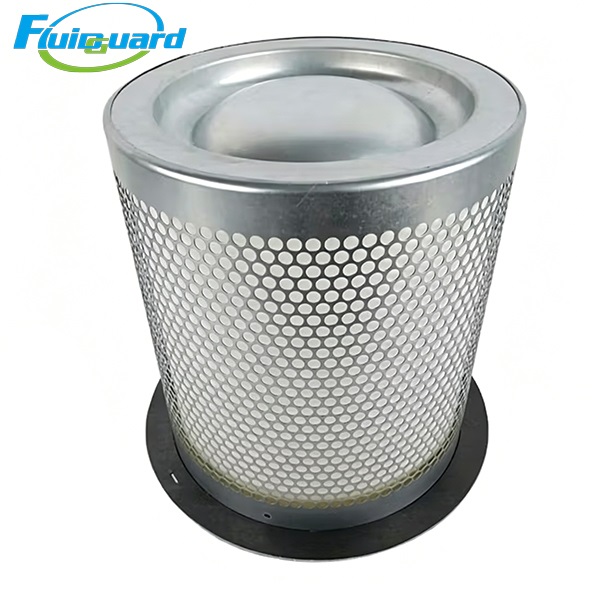

Oil Separators Filters

PN: 641403

Type: Primary coalescing separator cartridge

Media: HV borosilicate glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 215 mm

Height: 300 mm

Inner diameter: 110 mm

Weight: 3.5 kg

Service life: 4000 – 6000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application fields: Workshop, light industry, manufacturing

Features

Ultra-high efficiency, 0.1μm precision, minimal oil carry-over.

Reinforced steel mesh & core, anti-collapse, long service life.

Low pressure drop, energy efficient in continuous operation.

Premium HV glass fiber, stable performance in harsh conditions.

Description

Efficiently removes oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment.
