Model : zs1199687
Type : Oil Filters
Replacement for : zs1199687
Height : 147 mm – 148 mm

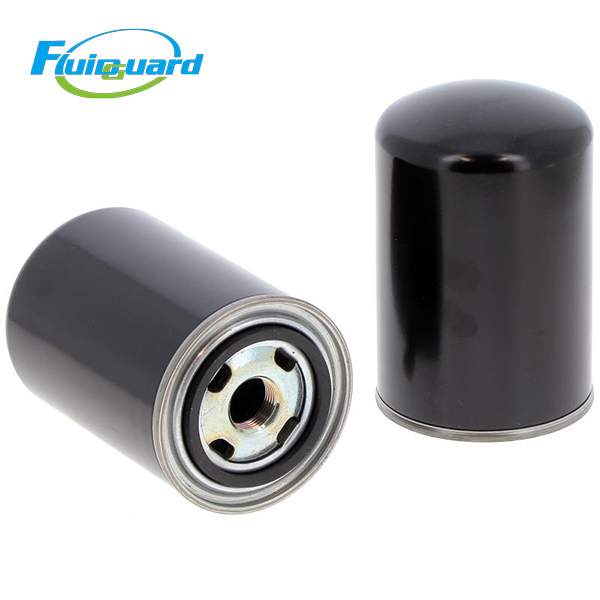

The ZS1199687 is a spin-on oil filter designed as a replacement part for industrial rotary screw air compressors. It is constructed with high-efficiency filtration media to remove contaminants from the compressor lubricating oil, ensuring the reliability and longevity of the lubrication system.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
The ZS1199687 is a spin-on oil filter designed as a replacement part for industrial rotary screw air compressors. It is constructed with high-efficiency filtration media to remove contaminants from the compressor lubricating oil, ensuring the reliability and longevity of the lubrication system.
Function / Features:
Contaminant Removal: Filters out solid particles, carbon residues, and impurities to prevent wear on the rotor bearings, gears, and airend.
System Protection: Maintains oil cleanliness to ensure optimal cooling, sealing, and lubrication within the compressor block.
Durability: Designed to operate under working pressures of 1.4–2.5 MPa and has a low initial pressure drop.
Service Life: Typically rated for a service life of approximately 2,000 to 3,000 operating hours depending on ambient conditions and oil quality.
Real Size:
Total Height: 147 mm – 148 mm
Outer Diameter: 93 mm
