Oil Filters

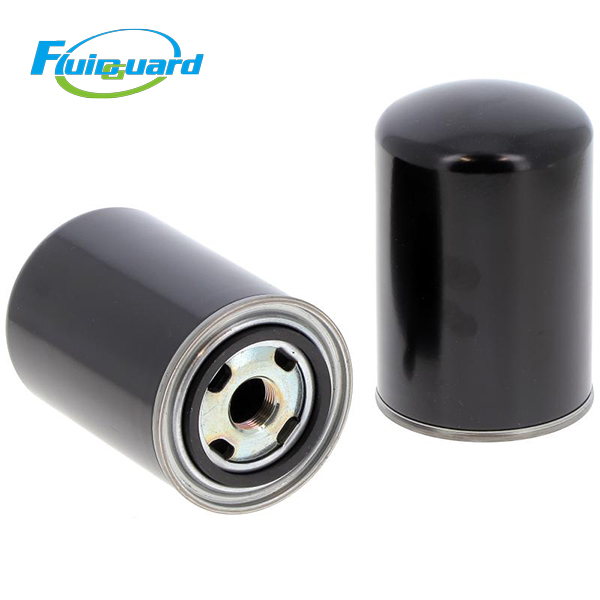

The ZS1059789 is a spin-on oil filter designed as a replacement part for industrial rotary screw air compressors. It is constructed with high-efficiency filtration media to remove abrasive particles, carbon residues, and impurities from the compressor lubricating oil, ensuring the reliability and longevity of the lubrication system.

Function / Features:

Contaminant Removal:​ Filters out solid particles, sludge, and impurities to prevent wear on the rotor bearings, gears, and airend.

System Protection:​ Maintains oil cleanliness to ensure optimal cooling, sealing, and lubrication within the compressor block, which helps control discharge temperatures and extends the life of the lubricant.

Durability:​ Designed to operate under nominal pressures ranging from 4 bar to 30 bar and suitable for standard compressor operating temperatures.

Service Life:​ Typically rated for a service life of approximately 2,000 to 2,500 operating hours​ depending on ambient conditions and oil quality.

Outer Diameter:​ 88 mm – 96 mm

Height:​ 88 mm – 100 mm
