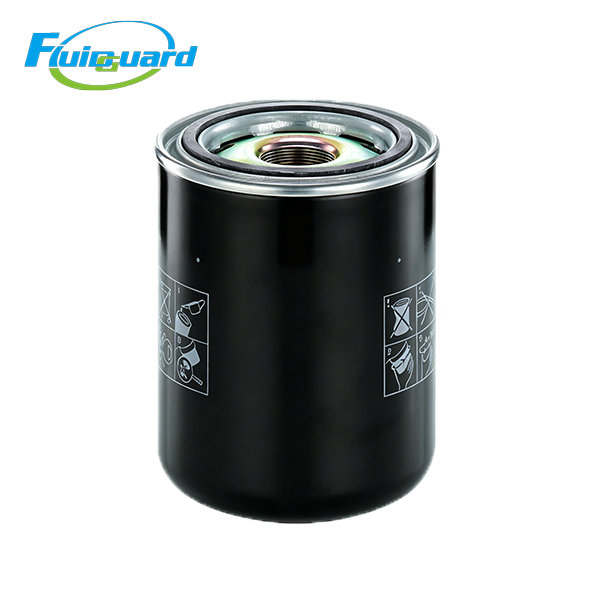

WD1374/2 Oil Filter

Model : WD1374/2

Type : Oil Filters

Replacement for : WD1374/2

WD1374/2 is a spin‑on type oil filter , widely used in industrial screw air compressors and hydraulic systems.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

Basic Specifications

PN: WD1374/2

Type: Full‑flow spin‑on oil filter

Thread: 1 1/2‑16 UN

OD: 136 mm

Height:177 mm

Max pressure: 20 bar

Filtration precision: 10–15 μm

Media: High‑efficiency cellulose / synthetic blend

Service life: 2000–4000 hours

Application

Also for hydraulic systems, gearboxes, industrial engines

Key Features

High dirt‑holding capacity, extends oil service life.

Built‑in bypass valve protects system during cold start or clogging.

Heavy‑duty steel housing, high pressure resistance.

Easy spin‑on installation, no special tools needed.
