Oil Filters

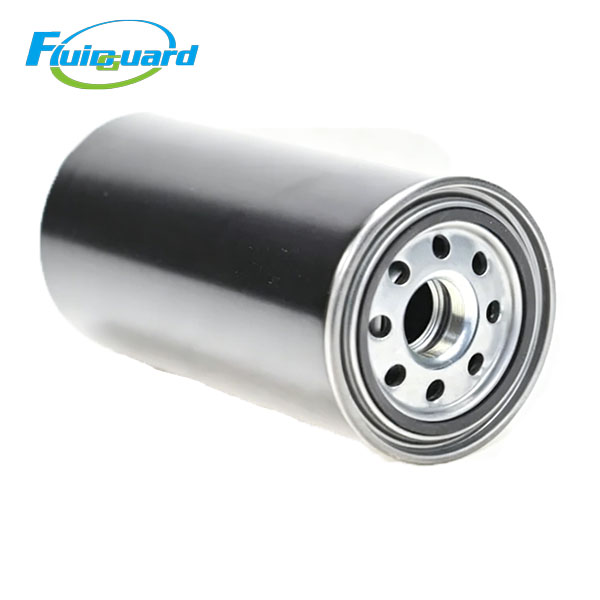

PN: SH8236

Filtration precision: 10μm, β≥200, efficiency ≥99.5%

Service life: 2000 working hours under standard operating condition

Seal: High-temperature resistant NBR rubber gasket

Bypass opening pressure: 0.12MPa

Dimension: OD98mm × Height172mm, Thread: 1-1/16"-12UN

Application

Fit for industrial hydraulic station, mobile compressor, construction machinery hydraulic circuit; widely matched for Kaeser, Atlas portable compressor hydraulic lubrication system.

Features

Multi-layer deep-pleated glass fiber with large dirt holding capacity, efficiently intercept metal abrasion particles, hydraulic oil sludge and oxidation impurities.

Thickened anti-corrosion seamless steel housing, resistant to frequent pressure surge and long-term equipment vibration.

Built-in differential pressure bypass valve to maintain continuous oil supply and avoid hydraulic pump dry abrasion upon element clogging.

Standard spin-on threaded structure for quick field replacement and easy maintenance.

Description

Spin-on hydraulic filter for industrial hydraulic & compressor lubrication system, purifies circulating hydraulic oil, protects hydraulic pump, valve block and actuator components, extends hydraulic oil service cycle and cuts unexpected equipment downtime.
