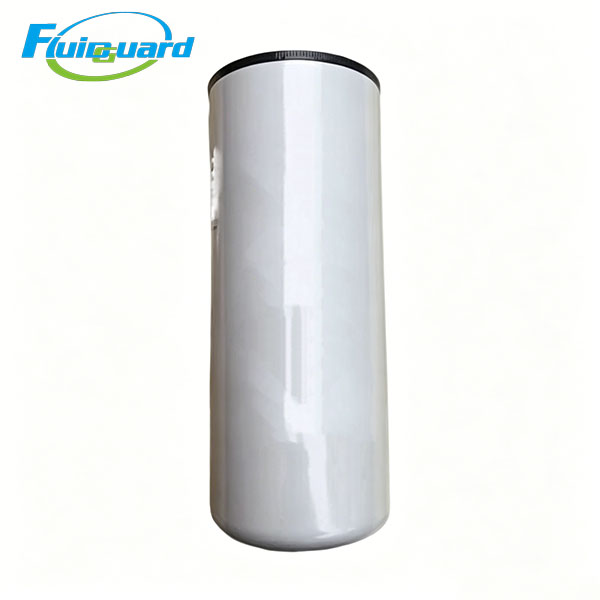

Model : P3516C160-3
Type : Oil Filters
Replacement for : P3516C160-3
Original spin-on lubricating oil filter specially, purifies circulating lubrication oil, protects high-speed rotor and bearing assembly, extends service cycle of compressor lubricant and reduces unexpected overhaul downtime.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: P3516C160-3
Filtration precision: 10~15μm, β6≥200, filtration efficiency ≥99.9%
Service life: 2000 working hours under standard operating condition
Seal: High temperature resistant NBR rubber gasket
Working temp: -28℃ ~ +135℃, Max working pressure: 3.5MPa
Dimension: OD128mm × Height272~278mm, Thread: 1-1/2"-16UN
Net weight: 1.8kg
Application
widely used in petrochemical, steel plant, power station central compressed air system.
Features
Multi-layer deep-pleated imported glass fiber media with large dirt holding capacity, effectively intercept metal wear particles, oil sludge and oxidation impurities from circulating lube oil.
Thickened Q235 anti-burst steel housing, stable structure against high pressure fluctuation and long-term unit vibration.
Built-in differential pressure bypass valve, keeps continuous oil supply to prevent main bearing dry grinding when filter element blocked.
Standard spin-on thread design with matched O-ring, easy field replacement and maintenance for centrifugal compressor lube circuit.
Description
Original spin-on lubricating oil filter specially, purifies circulating lubrication oil, protects high-speed rotor and bearing assembly, extends service cycle of compressor lubricant and reduces unexpected overhaul downtime.
