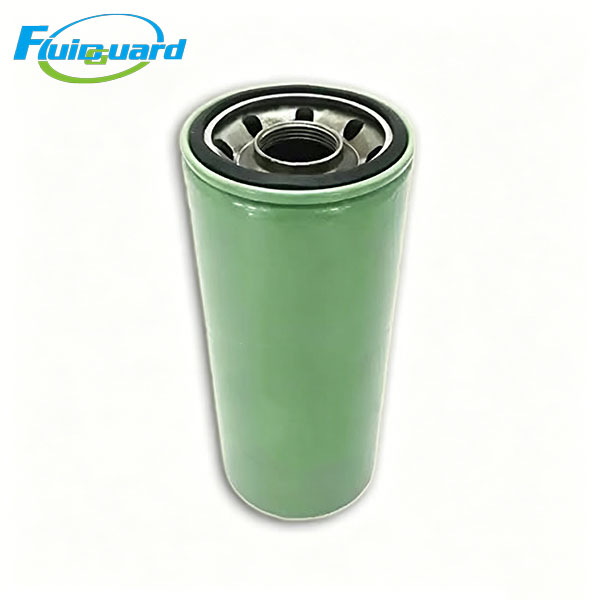

Model : JCQ81LUB092
Type : Oil Filters
Replacement for : JCQ81LUB092
High-performance spin-on lubricating filter for screw compressors. It purifies circulating oil effectively, protects rotors and bearings, extends the service life of compressor oil and separator elements, and lowers unplanned downtime.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: JCQ81LUB092
Media: HV composite glass fiber and cellulose
Filtration precision: 10 μm, efficiency ≥99.2%
Service life: 2000–3000 working hours under standard conditions
Seal: High-temperature resistant NBR rubber gasket
Bypass opening pressure: 0.22 MPa
Thread: Standard spin-on thread
Dimension: OD 110 mm × Height 185 mm
Max working pressure: 3.0 MPa
Working temperature: -20℃ ~ +120℃
Application
Designed for industrial screw air compressors of matching models, widely used in machinery, textile and general factory air supply systems.
Features
Deep-pleated filter material with large dirt holding capacity to trap metal debris, oil sludge and oxidized impurities.
Thickened anti-corrosion steel shell, stable against long-term vibration and pressure fluctuation.
Built-in bypass valve ensures continuous oil supply and prevents airend dry abrasion when clogged.
Simple spin-on structure for quick installation and easy field maintenance.
Description
High-performance spin-on lubricating filter for screw compressors. It purifies circulating oil effectively, protects rotors and bearings, extends the service life of compressor oil and separator elements, and lowers unplanned downtime.
