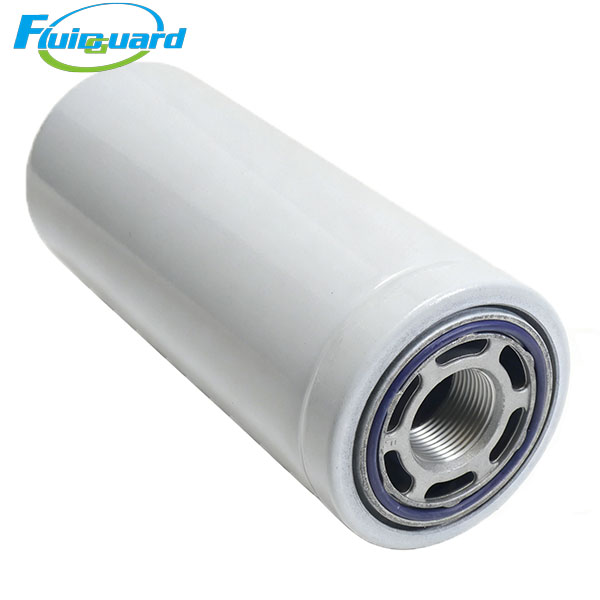

Oil Filters

PN: 142243

Media: HV composite glass fiber and cellulose blend

Filtration precision: 10 μm, filtration efficiency ≥99.5%

Service life: 2000–3000 working hours under standard operating condition

Seal: High-temperature resistant NBR rubber gasket

Working temperature: -20℃ ~ +120℃

Max working pressure: 2.07 MPa

Dimension: OD 120 mm × Height 158 mm

Application

Widely used in machinery manufacturing, chemical industry, textile and other industrial air supply systems.

Features

Deep-pleated filter media with large dirt holding capacity, efficiently removes metal particles, oil sludge and oxidized impurities.

Thickened anti-corrosion steel housing, stable against pressure fluctuation and long-term vibration.

Built-in differential pressure bypass valve guarantees continuous oil flow and avoids dry abrasion of the airend when blocked.

Standard spin-on structure for quick installation and convenient on-site maintenance.

Description

It cleans circulating lubricant, protects rotors and bearings, prolongs service life of compressor oil and separator elements, and cuts down unexpected downtime.
