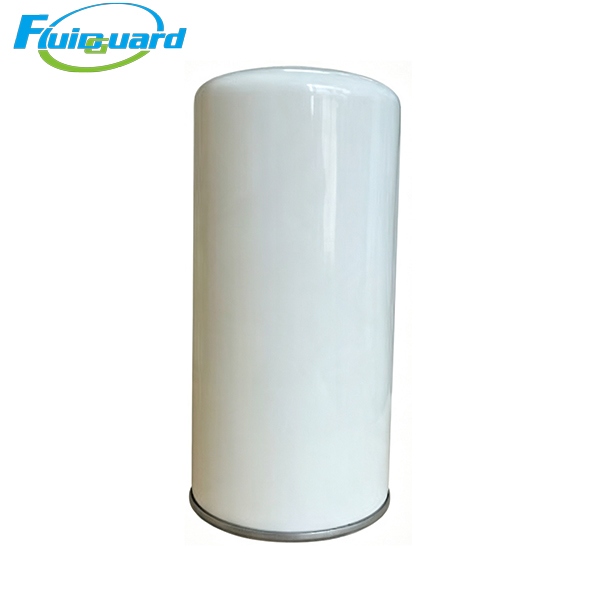

Oil Filters

Part No: 3001151301

Filter Medium: High-efficiency composite filter paper

Filtration accuracy: 10μm

Service life: 4000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature nitrile rubber

Main Features

High-performance composite filter medium, effectively intercept metal debris, carbon sediment and solid impurities in lubricating oil

Built-in bypass valve, ensures continuous oil circulation and protects the host when filter element is blocked

Complete maintenance kit, all matching sealing parts included for one-stop replacement

Integrated spin-on structure, simple disassembly and convenient on-site maintenance

High temperature resistant sealing assembly, stable sealing performance to prevent oil leakage

Optimized pleating layout, large dirt holding capacity and long service cycle

Low fluid resistance, guarantee stable lubrication flow for airend

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other large industrial compressed air stations.

Brief Summary

It removes solid contaminants in compressor lubricant oil, protects rotor and bearings of airend, reduces wear and extends the service life of main unit.
