Oil Filters

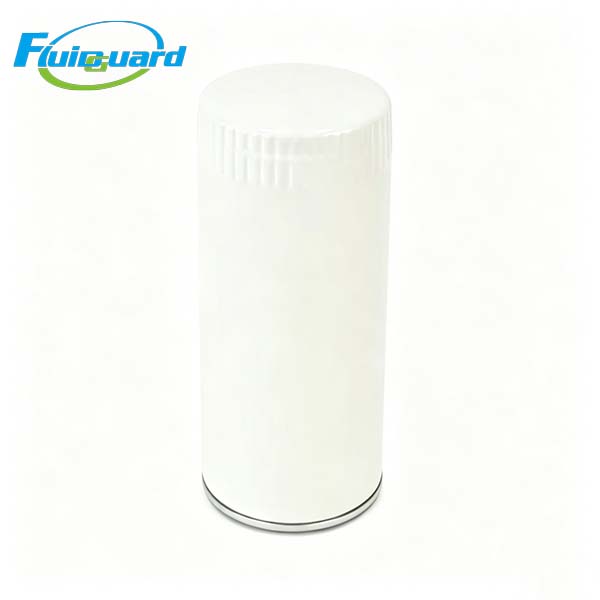

The 2914505000 is a heavy-duty spin-on oil filter, designed for heavy construction machinery, industrial diesel engines, commercial vehicles and large equipment lubrication systems. It effectively filters out metal debris, carbon deposits, sludge and tiny impurities in engine oil, keeps the lubrication system clean, reduces internal component wear, avoids oil circuit blockage, and maintains long-term stable operation of the engine.

Key Features

Adopts high-density multi-layer composite filter media, with high filtration precision and large dirt holding capacity to extend service cycle.

Built-in anti-drain back valve prevents oil backflow after engine shutdown and avoids dry start damage.

Internal bypass valve ensures continuous oil supply under cold start or filter clogging conditions.

Reinforced thick steel shell structure, high pressure resistance and deformation resistance, adapting to harsh working environments.

Premium nitrile rubber sealing ring has good aging resistance, tight fitting performance and excellent oil leakage prevention.

Standard overall size and thread specification, easy screw-on installation, perfect direct replacement without any modification.

Technical Specifications

Part Number: 2914505000

Type: Spin-on Oil Filter

Outer Diameter: 107 mm

Overall Height: 193 mm

Seal Outer Diameter: 81 mm

Seal Inner Diameter: 68 mm

Thread Size: 1-12 UNF

Filtration Rating: 10 μm

Filtration Efficiency: ≥ 99.5%

Bypass Valve Opening Pressure: 2.6 bar

Max Working Pressure: 2.0 MPa

Service Life: 2000–3000 operating hours

Application:Suitable for heavy-duty engineering machinery, large agricultural equipment, industrial diesel engines, generator sets and commercial heavy trucks with matching mounting standards.
