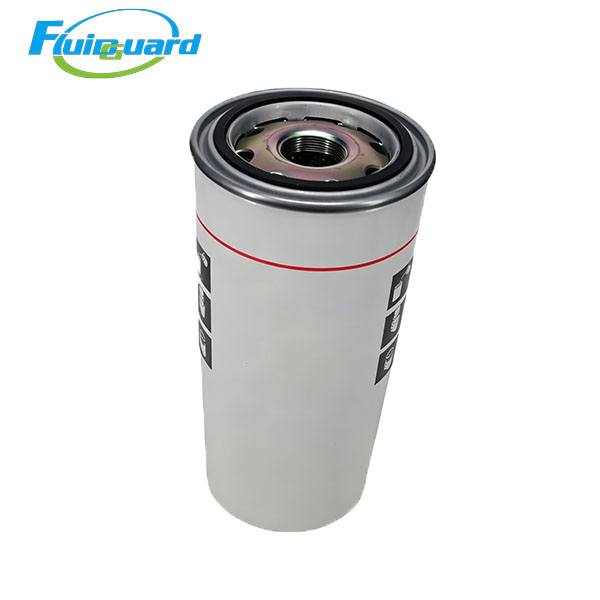

Model : 24900433
Type : Oil Filters
Replacement for : 24900433
This oil filter removes metal debris, sludge and oxidation impurities in lubricant oil, effectively protects compressor rotor, bearings and core components, stabilizes unit running efficiency and extends equipment service life.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model: 24900433
Type: Spin-on lube oil filter
Dimension Parameters
Outer Diameter: 117 mm
Overall Height: 362 mm
Thread: 1-3/4"-12 UN
Bypass Valve Opening Pressure: 2.2 bar
Working Temp: -10℃ ~ +90℃
Technical Spec
Filter Media: Composite glass fiber + high-efficiency cellulose paper
Filtration Rating: 10 μm
Standard Service Life: 2000~3000 working hours
Product Features
Built-in anti-drainback valve & bypass valve, avoid dry start damage and stabilize lubricating oil pressure.
High-temperature nitrile rubber gasket, tight sealing to prevent oil leakage under continuous high temperature.
Large folding filter area, high dirt holding capacity and low flow resistance to save compressor power consumption.
Description
This oil filter removes metal debris, sludge and oxidation impurities in lubricant oil, effectively protects compressor rotor, bearings and core components, stabilizes unit running efficiency and extends equipment service life.
