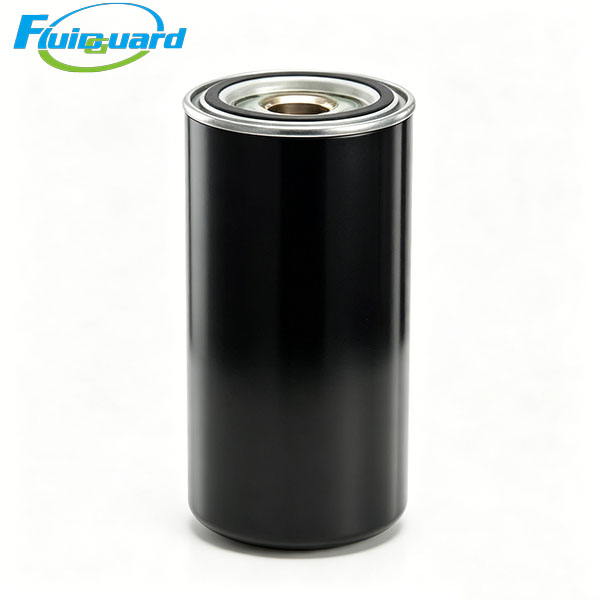

Model : WD13145/8
Type : Oil Filters
Replacement for : WD13145/8
WD13145/8 removes metal debris, sludge and oxide impurities from lubricant oil, effectively protects compressor host rotor, bearings and core moving parts, stabilizes unit running performance and prolongs service life of equipment.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model: WD13145/8
Type: Spin-on lubricating oil filter
Dimension Parameters
Outer Diameter: 136 mm
Overall Height: 302 mm
Thread: 1 1/2"-16 UN
Seal OD:111 mm, Seal ID:100 mm
Bypass Valve Opening Pressure: 2.5 bar
Technical Spec
Filter Media: Composite glass fiber + high-efficiency cellulose paper
Filtration Rating: 8μm
Standard Service Life: 2000 working hours for air compressor
Product Features
Built-in anti-drainback valve + bypass valve, keep residual oil inside filter after shutdown, avoid dry start-up damage
High temperature resistant nitrile rubber gasket, stable sealing under high oil temperature without leakage
Large filter area, superior dirt holding capacity, low flow resistance to reduce compressor power consumption
Description
WD13145/8 removes metal debris, sludge and oxide impurities from lubricant oil, effectively protects compressor host rotor, bearings and core moving parts, stabilizes unit running performance and prolongs service life of equipment.
