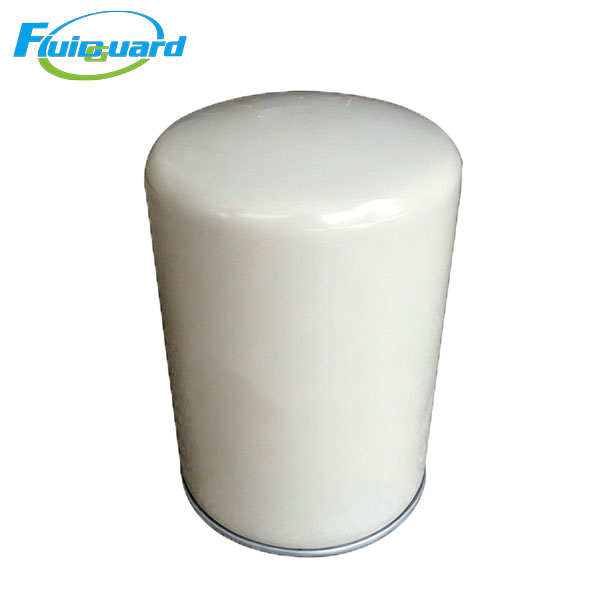

Model : 23711428
Type : Oil Filters
Replacement for : 23711428
It purifies circulating lubricant, protects rotors and bearings, extends service life of compressor oil and separator elements, and minimizes unexpected downtime.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 23711428
Filtration precision: 10μm, efficiency ≥99.7%
Service life: 2000–3000 working hours
Seal: High-temperature resistant NBR rubber gasket
Bypass opening pressure: 0.25MPa
Working temperature: -30℃ ~ +120℃
Max working pressure: 1.2MPa; Burst pressure ≥3.5MPa
Thread: M24×1.5 metric thread
Dimension: OD 135mm × Height 200mm
Application
widely used in general industrial compressed air systems.
Features
High-efficiency media: 5-layer gradient deep-pleated composite fiber with large dirt-holding capacity, traps metal wear debris, oil sludge, and oxidation contaminants.
Heavy-duty housing: Thickened anti-rust steel shell passes 500-hour salt spray test, resists pressure fluctuations and long-term vibration.
Built-in bypass valve: Ensures continuous oil supply and prevents dry grinding of the airend when clogged.
Easy maintenance: Spin-on design for quick, tool-free replacement.
Description
It purifies circulating lubricant, protects rotors and bearings, extends service life of compressor oil and separator elements, and minimizes unexpected downtime.
