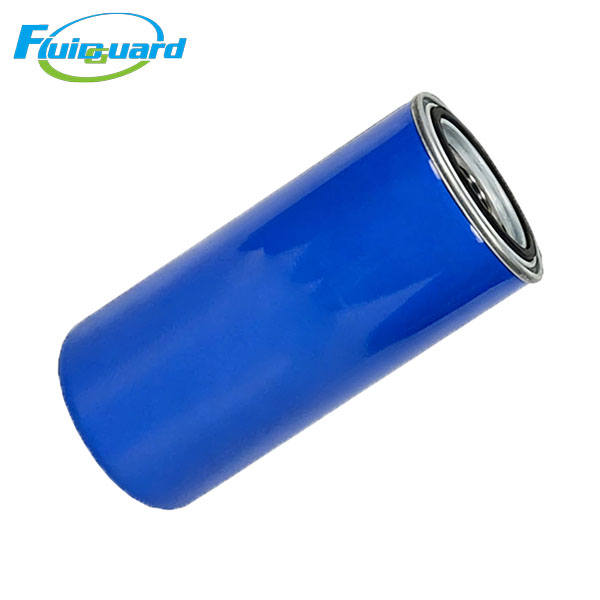

2013400282 Oil Filter

Model : 2013400282

Type : Oil Filters

Replacement for : 2013400282

It purifies circulating lubricant, protects rotors and bearings, extends service life of compressor oil and separator elements, and minimizes unexpected downtime.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 2013400282

Filtration precision: 10μm, filtration efficiency ≥99.5%

Service life: 2000~3000 working hours under standard operating condition

Seal: High-temperature resistant NBR rubber gasket

Bypass opening pressure: 0.25MPa

Working temperature: -20℃ ~ +120℃

Max working pressure: 2.07MPa

Thread: 1 1/4-11 BSP

Dimension: OD 120mm × Height 158mm

Application

Widely applied in machinery manufacturing, chemical industry, textile and other industrial air supply systems.

Features

Multi-layer composite fiber media with large dirt holding capacity, effectively removes metal particles, oil sludge and oxidized contaminants.

Thickened anti-corrosion steel housing, resistant to pressure fluctuation and long-term mechanical vibration.

Built-in differential pressure bypass valve ensures continuous oil flow and prevents dry abrasion of airend when clogged.

Spin-on design enables quick installation and replacement for easy on-site maintenance.

Description

It purifies circulating lubricant, protects rotors and bearings, extends service life of compressor oil and separator elements, and minimizes unexpected downtime.
