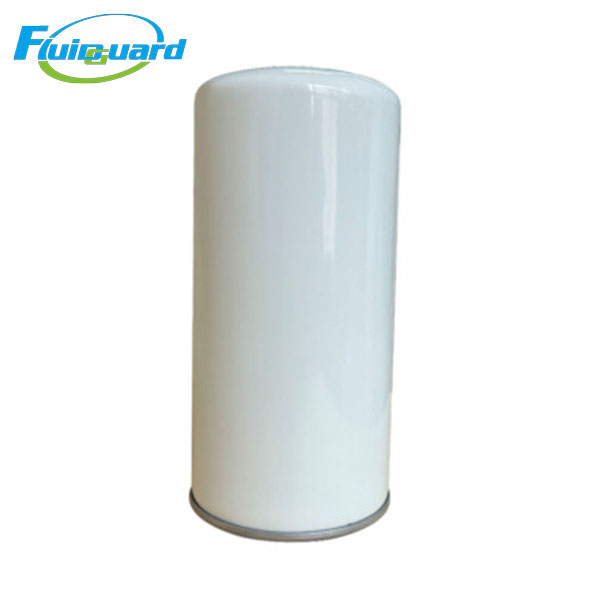

Oil Filters

PN：1635683200

Filtration precision：6μm，filtration efficiency ≥99.7%

Service life：2000 working hours；1200~1500hrs under high dust & high-temperature working environment

Seal：High-temperature resistant NBR rubber gasket, built-in differential pressure bypass valve

Bypass open pressure：0.13MPa

Thread：1 1/8-16 UNF

Application

widely used in mining, cement plant, chemical industry and centralized compressed air station.

Features

Deep-pleated glass fiber with large dirt holding capacity, effectively filter metal wear particles, carbon sludge and oil oxidation impurities.

Thickened anti-corrosion steel shell, stable structure against long-time system pressure fluctuation and mechanical vibration, no oil leakage.

Built-in bypass valve guarantees continuous oil supply once filter is blocked, avoid dry friction damage of airend and bearings.

Standard spin thread design, direct screw installation, fast disassembly and convenient field maintenance.

Description

Spin-on lubricating filter for medium-sized screw compressor, purify circulating lubricant, protect screw host and bearing components, extend service cycle of compressor oil and oil separator core, reduce unexpected shutdown maintenance loss.
