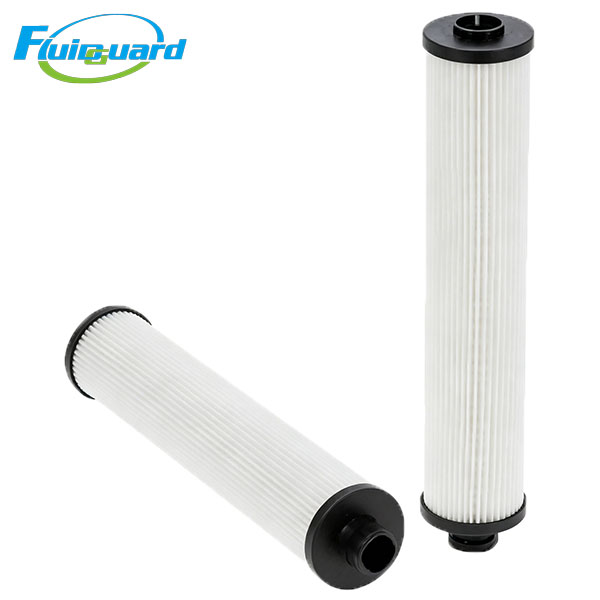

Model : SH62368
Type : Oil Filters
Replacement for : SH62368
Inline hydraulic filter element for screw compressor lubricating circuit, keep circulating oil clean, protect hydraulic components and airend, extend service cycle of compressor oil and reduce unexpected breakdown loss.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN：SH62368
Media：Multi-layer HV composite glass fiber
Filtration precision：10μm，filtration efficiency ≥98.8%
Service life：3000 working hours under normal operating conditions
Seal：High-temperature resistant NBR rubber sealing ring
Working temp：-20℃ ~ 110℃，Max working pressure：3.2MPa
Max allowable differential pressure：0.8MPa
Application
Fit for medium & large screw air compressor hydraulic/lubrication system，widely used in mining, cement plant, chemical industry and centralized compressed air station.
Features
Deep folded glass fiber material with large dirt holding capacity, intercept metal abrasion particles, oil sludge and oxide impurities effectively.
Reinforced internal support skeleton, anti-deformation under high pressure and frequent flow fluctuation.
Fine sealing structure, avoid bypass leakage of unfiltered hydraulic oil.
Cartridge installation design, quick replacement and easy on-site maintenance.
Description
Inline hydraulic filter element for screw compressor lubricating circuit, keep circulating oil clean, protect hydraulic components and airend, extend service cycle of compressor oil and reduce unexpected breakdown loss.
