Hoses, Piping & Tubes

Part No: 85575090

Hose Body Material: High‑temperature resistant synthetic rubber, multi‑layer steel wire braid reinforcement, black outer protective cover

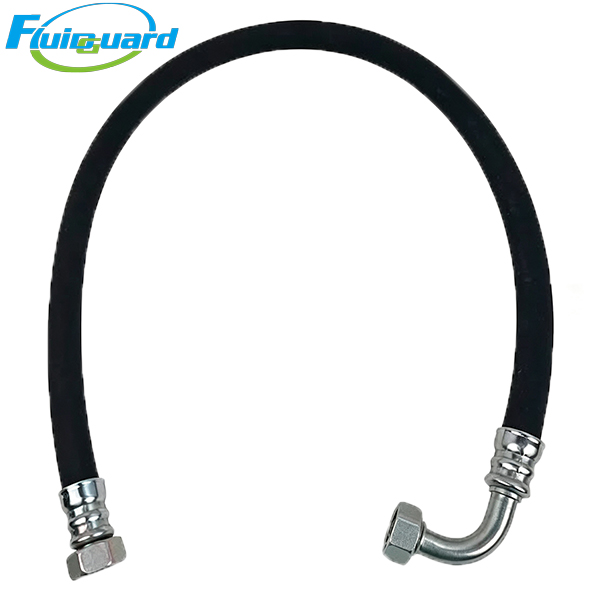

Fitting Material: Carbon steel galvanized crimped integrated assembly, one 1" ORFS straight joint, one 1" ORFS 90° elbow joint,‑16 size, total length 660mm

Rated Working Pressure: 16 bar

Burst Pressure: ≥64 bar

Working Temperature Range: ‑30℃ ~ +135℃

Media Compatibility: Compressor lubricating mineral oil & synthetic oil

Connection Type: Fixed crimped metal end connections, ready‑to‑install assembly

Service Life: 8000 working hours under normal operating conditions

Main Features

Multi‑ply steel‑wire braid reinforcement structure, excellent pressure‑bearing performance, resist pressure pulse impact from compressor oil circuit.

High‑temperature‑resistant rubber inner layer, stable performance under long‑term hot‑oil circulation, anti‑aging and oil‑swell resistant.

Galvanized metal ORFS straight‑elbow fittings, good corrosion resistance, adapt to narrow installation space, effectively avoid leakage at crimp joint.

Flexible bending property, absorbs unit vibration, reduces stress load on pipeline connection points.

Application Industry

Widely used in machinery manufacturing, electronics, food, pharmaceutical, packaging and other industrial compressed‑air stations.

Brief Summary

It transports high‑temperature lubricating oil inside compressor unit, absorbs equipment vibration, prevents oil‑circuit leakage, guarantees stable and safe compressor operation.
