Hoses, Piping & Tubes

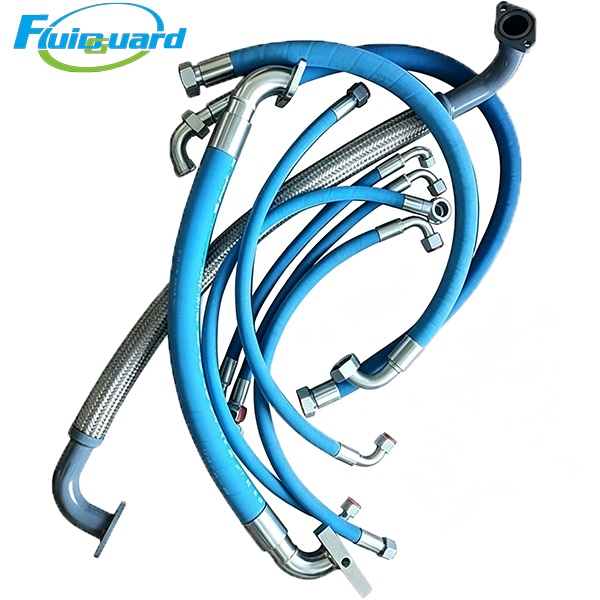

Part No: 1621267800

Hose Body Material: High‑temperature resistant synthetic rubber, multi‑layer steel wire braid reinforcement

Fitting Material: Carbon steel galvanized flange crimped integrated assembly, one straight flange joint, one 90° elbow flange joint

Rated Working Pressure: 16 bar

Burst Pressure: ≥64 bar

Working Temperature Range: ‑30℃ ~ +180℃

Media Compatibility: High‑temperature compressed air mixed with compressor lubricant oil

Connection Type: Flange crimped metal end connections, ready‑to‑install assembly

Service Life: 8000 working hours under normal operating conditions

Main Features

Integral crimped flange‑type high‑temperature hose assembly, direct replacement for original equipment, no additional processing required for on‑site installation.

Multi‑ply steel‑wire braid reinforcement structure, excellent pressure‑bearing performance, resist pressure pulse impact from compressor discharge side.

Special high‑temperature‑resistant rubber inner layer, stable performance under long‑term high‑temperature air‑oil mixed medium, anti‑aging and oil‑swell resistant.

Heavy‑duty galvanized flange fittings, reliable flange face sealing, adapt to high‑temperature discharge pipeline layout, effectively avoid leakage at crimp joint.

Good flexible bending performance, absorbs unit vibration and thermal expansion displacement, reduces stress load on pipeline connection points.

Application Industry

Widely used in machinery manufacturing, electronics, food, pharmaceutical, packaging and other industrial compressed‑air stations.

Brief Summary

It transports high‑temperature air‑oil mixture from air end to separator tank, absorbs equipment vibration and thermal deformation, prevents medium leakage, guarantees stable and safe compressor operation.
