Hoses, Piping & Tubes

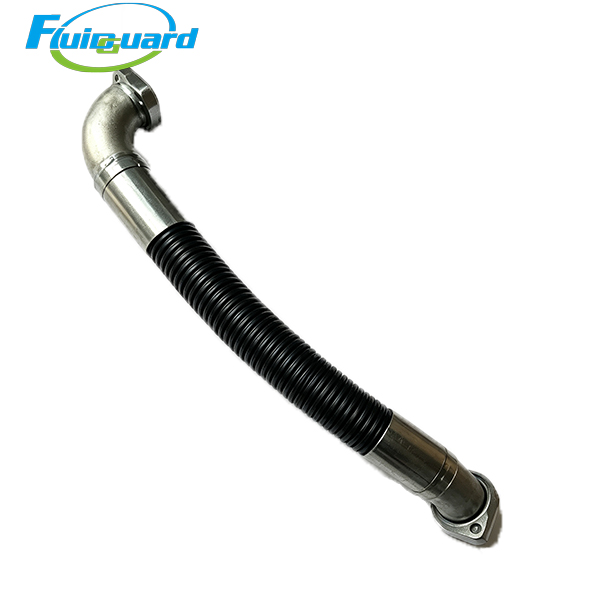

Part No: 0574823537

Hose Body Material: High‑temperature resistant synthetic rubber, multi‑layer steel wire braid reinforcement, black outer rubber cover

Fitting Material: Carbon steel galvanized crimped integrated assembly, flange connection at both ends

Rated Working Pressure: 16 bar

Burst Pressure: ≥64 bar

Working Temperature Range: ‑30℃ ~ +180℃

Media Compatibility: High‑temperature compressed air mixed with compressor lubricant oil

Connection Type: Flange crimped metal end connections, ready‑to‑install assembly

Service Life: 8000 working hours under normal operating conditions

Main Features

Integral crimped high‑temperature hose assembly, direct replacement for original equipment, no additional processing required for on‑site installation.

Multi‑ply steel‑wire braid reinforcement structure, excellent pressure‑bearing performance, resist pressure pulse impact from compressor discharge side.

Special high‑temperature‑resistant rubber inner layer, stable performance under long‑term high‑temperature air‑oil mixed medium, anti‑aging and oil‑swell resistant.

Double‑end flange fittings, good corrosion resistance, uniform flange face sealing, effectively avoid leakage at crimp joint and flange surface.

Good flexible bending performance, absorbs unit vibration and thermal expansion displacement, reduces stress load on pipeline connection points.

Application Industry

Widely used in machinery manufacturing, electronics, food, pharmaceutical, packaging and other industrial compressed‑air stations.

Brief Summary

It transports high‑temperature air‑oil mixture from air end to separator tank, absorbs equipment vibration and thermal deformation, prevents medium leakage, guarantees stable and safe compressor operation.
