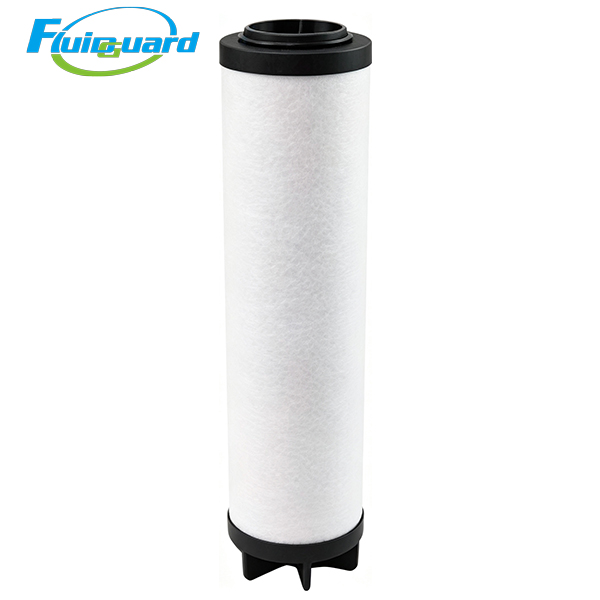

Part No: CE0132B

Core Technical Specifications

Filtration Precision: Captures solid particles ≥0.01μm, liquid oil & water aerosols ≥0.01μm

Filtration Efficiency: 99.999% removal efficiency for 0.01μm liquid aerosols

Filter Media: Multi-layer gradient hydrophobic borosilicate micro glass fiber composite, outer white oleophobic anti-re-entrainment foam sleeve with full anti-static coating

Dimension Data

Continuous Operating Temperature: 2°C ~ 66°C

Standard Replacement Cycle: Replace after 4,000 operating hours or 12 months, whichever comes first

Differential Pressure Service Thresholds

Warning Alarm Trigger: ΔP＞0.045 MPa

Mandatory Shutdown Replacement: ΔP≥0.07 MPa

Initial Differential Pressure: ≤0.016 MPa

Sealing System: Reinforced black engineering plastic end caps with integrated dual nitrile rubber flat gaskets, zero air bypass leakage

Key Product Advantages

Deep-Pleated Low-DP Media for Energy Saving

Optimized deep-fold gradient micro glass fiber maximizes effective filtration area, maintaining ultra-stable low pressure drop under 24/7 full-load continuous operation, drastically cutting long-term power consumption of medium & large central air compressor units.

Extra-Large Liquid Holding Capacity Extends Maintenance Intervals

Thick multi-gradient hydrophobic fiber matrix provides massive oil & water storage volume, resisting rapid saturation under high-humidity, high-oil workshop environments and reducing frequent replacement labor and spare parts procurement costs.

Hydrolysis & Abrasion Resistant Fiber-Free Construction

Oleophobic borosilicate micro glass fiber paired with stainless steel support mesh prevents fiber shedding under long-term humid compressed air operation, eliminating secondary pipeline contamination to downstream precision equipment and finished products.

Working Principle

Dust-free pre-filtered compressed air from CE0132A prefilter flows outside-in through the filter cartridge:

Micro oil & water aerosols collide and coalesce into large liquid droplets across multi-layer gradient borosilicate micro glass fiber media;

Outer white anti-re-entrainment foam sleeve stops coalesced liquid droplets from being re-carried by high-speed airflow;

Condensed oil and water drain down to the filter bowl by gravity;

Ultra-dry, ultra-low-oil compressed air is delivered to downstream CE0132C activated carbon filter or high-precision production equipment.
