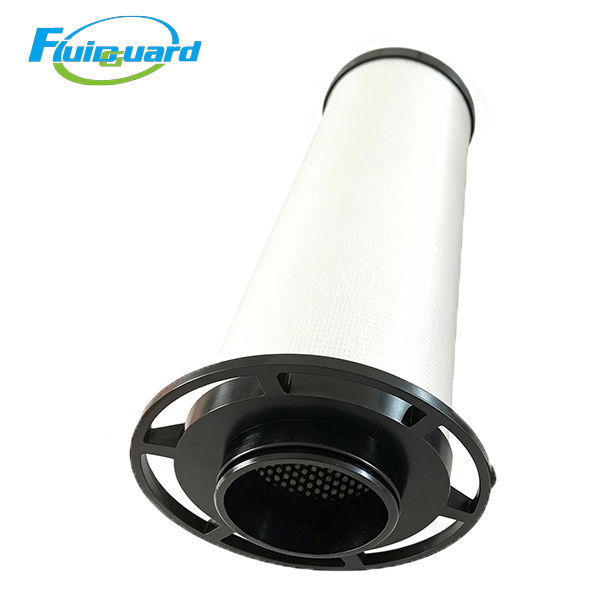

Model: 24232688

Core Technical Specifications

Captured Contaminants: Solid particles, condensed water, large & medium oil mist droplets

Filter Media: Multi-layer gradient borosilicate micro-glass fiber, hydrophobic & oleophobic coating

Rated Flow: 600 m³/h

Max Working Pressure: 16 bar / 232 PSIG

Continuous Operating Temp: ≤80℃

Core Product Advantages

Intermediate Stage Oil Mist Separation & System Protection

Installed after Grade X coarse pre-filter, intercepts 0.1μm submicron oil mist and tiny residual condensate. Greatly reduces pollutant load for downstream H ultra-fine filter and activated carbon filter, extends their service life and protects refrigerated dryer desiccant from oil contamination.

Low Pressure Drop & Energy Saving

Deep-pleated composite media expands effective filtration area significantly. Maintains stable low airflow resistance under 24h full-load continuous running, reduces air compressor extra power loss and factory operation cost.

Large Dirt & Oil Holding Capacity

Gradient layered depth filtration structure stores massive lubricating oil, moisture and solid sludge, extends maintenance cycle and cuts production downtime during replacement.

Anti-deformation Reinforced Plastic Frame

Dual plastic support cages resist high-speed airflow impact, prevent media collapse, deformation and fiber shedding, avoid secondary fiber pollution of clean compressed air.

Working Principle

Compressed air pre-treated by X grade coarse filter enters cartridge from outer plastic frame. Outer coarse fiber traps residual large solid particles and bulk water; inner gradient glass fiber captures 0.1μm oil mist aerosol, tiny oil droplets collide and coalesce into large liquid condensate, sink to housing bottom and drain automatically via gravity. Moderately purified air flows to H grade ultra-precision filter for further purification.

Application & Industries

Core medium coalescing filter for medium-large flow compressed air post-processing systems, installed between pre-filter and ultra-fine filter.

Widely applied in automotive production lines, heavy machinery manufacturing, packaging printing, textile industrial parks, general spraying, food processing, medium-heavy laser cutting, centralized factory air supply systems.
