Coalescing Filters

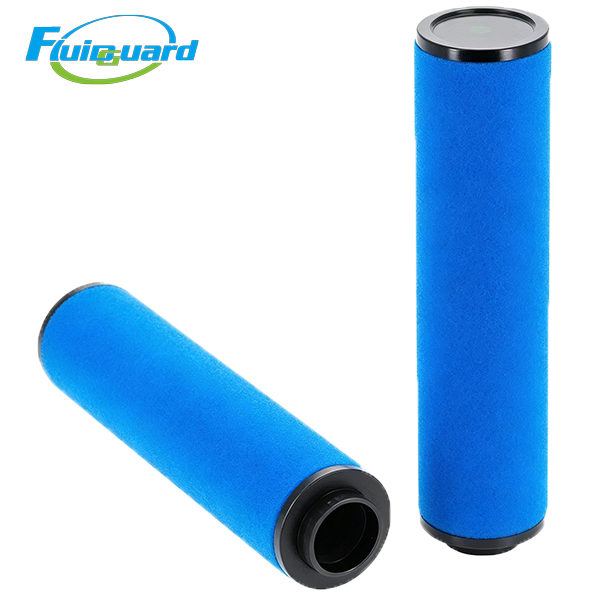

Part No: SLAF‑40HA

Product Type: In‑line high‑precision coalescing filter element

Filtration Rating: 0.01 μm, residual oil content ≤0.01 mg/m³

Rated Flow: 40 Nm³/min

Max Working Pressure: 16 bar

Operating Temperature: ‑20℃ ~ +65℃

Dimension: Φ100 mm, Length 500 mm, bayonet quick‑lock mounting, Weight 1.28 kg

Filter Media: Borosilicate micro‑glass‑fiber coalescing media, double metal support screens, integrated rubber end seals

Recommended Service Life: 8000 working hours or 1 year. Replace when pressure difference reaches 0.08 bar.

Main Features

Bayonet quick‑lock design for tool‑free fast replacement.

Deep‑layer borosilicate micro‑glass‑fiber coalescing media efficiently captures sub‑micron oil mist and fine solid particles for deep oil‑removal purification.

Double‑layer perforated metal screens protect filter media against high‑speed airflow impact and deformation for long‑term continuous‑duty operation.

Optimized media layout delivers low initial pressure drop to reduce system energy consumption. Excellent resistance to condensate and aging.

Integrated rubber end seals eliminate bypass airflow and guarantee full filtration efficiency.

Installed downstream of HT‑grade element as main fine filtration, supplying high‑quality compressed air for painting, food‑processing and electronic industries.

Application Industries

Screw compressor post‑treatment systems, general manufacturing, spray painting, food processing, pharmacy, electronics, mining and building‑material industries. Performs deep‑duty oil‑mist and fine‑particle removal for compressed‑air purification.

Product Summary

Secondary deep‑duty filtration removes sub‑micron oil mist and solid contaminants, delivers low‑oil clean compressed‑air for high‑end industrial processes.
