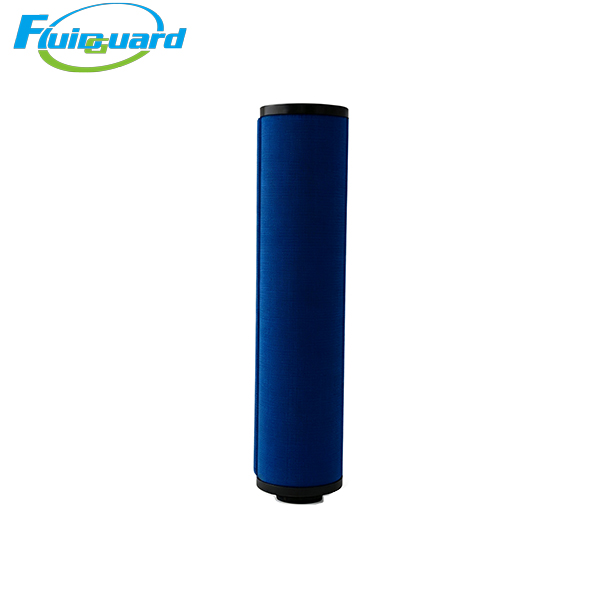

SLAF-40HT Coalescing Filter

Model : SLAF-40HT

Type : Coalescing Filters

Replacement for : SLAF-40HT

Quick‑install bayonet cartridge performs intermediate compressed‑air purification, intercepts liquid oil‑water and solid contaminants, safeguards downstream HA‑grade fine‑filter elements and guarantees compressed‑air quality.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: SLAF‑40HT

Filtration Rating: 1 μm, residual oil content ≤1 mg/m³

Rated Flow: 40 Nm³/min

Max Working Pressure: 16 bar

Operating Temperature: ‑20℃ ~ +65℃

Dimension: Φ100 mm, Length 500 mm, bayonet quick‑lock mounting, Weight 1.25 kg

Filter Media: Gradient multi‑layer borosilicate glass‑fiber coalescing media, double metal support screens, integrated rubber end seals

Recommended Service Life: 8000 working hours or 1 year. Replace when pressure difference reaches 0.08 bar.

Main Features

Bayonet quick‑lock design for tool‑free fast replacement.

Gradient multi‑layer glass‑fiber coalescing media traps liquid oil mist, condensate and solid particles above 1 μm for intermediate‑stage air purification.

Double‑layer perforated metal screens resist airflow impact and prevent media deformation for long‑term continuous‑duty operation.

Optimized media layout delivers low initial pressure drop to reduce system energy consumption. Good resistance to condensate and aging.

Integrated rubber end seals eliminate bypass airflow and guarantee full filtration efficiency.

Normally installed downstream of HC‑grade and upstream of HA‑grade element to protect high‑precision downstream cartridges and extend service life.

Application Industries

Screw compressor post‑treatment systems, general manufacturing, spray painting, food processing, pharmacy, electronics, mining and building‑material industries. Removes water, oil mist and solid particulates for compressed‑air purification.
