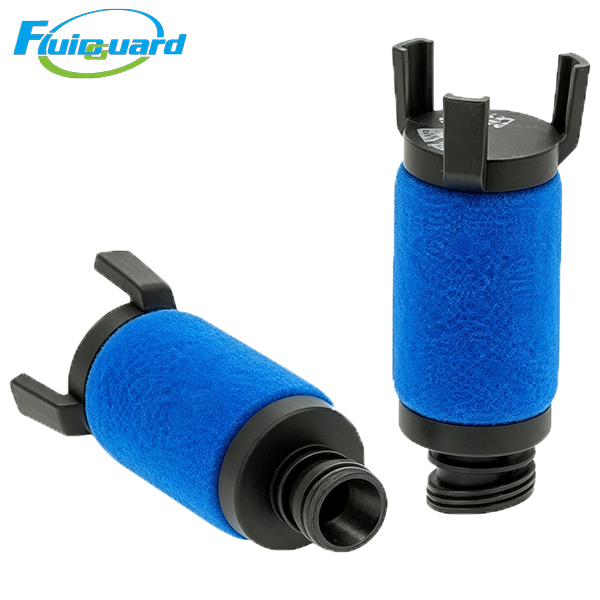

Coalescing Filters

Part No: SI94043

Filtration Accuracy: 0.01μm

Filtration Efficiency: 99.99%

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +60℃

Rated Flow: 1880m³/h

Service Life: 5000‑8000h

Filter Media: Composite glass fiber with activated carbon

Main Features

High‑efficiency coalescing structure to remove oil mist, water vapor and solid particulates from compressed airAIDA

Low pressure drop, excellent air permeability to reduce system energy consumption

Good temperature and pressure resistance for harsh air‑compressor working conditions

Protect downstream equipment, painting system and pneumatic components from oil and water contamination

Application Industries

Air compressor post‑treatment system, painting industry, food & pharmacy, electronics manufacturing, pneumatic equipment, precision instrument air supply system

Product Summary

SI94043 is a high‑precision coalescing filter element installed in air compressor pipeline. It removes oil mist, moisture and solid contaminants to provide high‑clean compressed air for various industrial applications, which can be directly used as OEM replacement filter element
