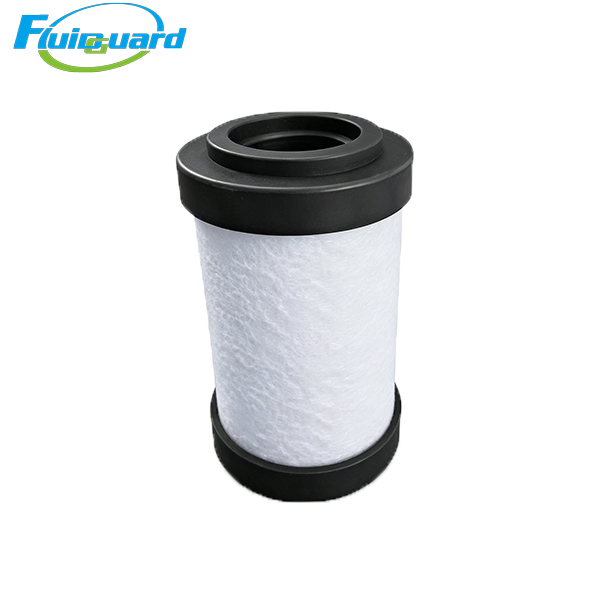

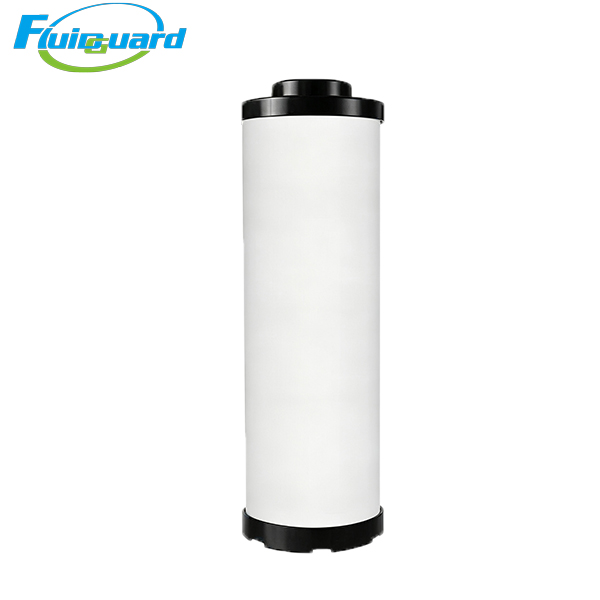

Coalescing Filters

Part No:030AA

Filter Media: Borosilicate glass‑fiber composite media

Filtration accuracy:0.01 μm

Residual oil content: ≤0.01 ppm

Nominal flow rate:3.0 Nm³/min

Max Working Pressure:16 bar

Operating Temperature:‑10℃ ~ +66℃

Construction: Inner support core, nylon end caps, O‑ring seal, insert‑type installation inside filter housing

Recommended Service Life:4000‑8000 working hours. Replace immediately for high differential pressure or oil carry‑over. Cannot be cleaned, must be replaced directly.

Main Features

High‑efficiency AA‑grade coalescing media removes oil mist, liquid oil, water vapor and solid particles from compressed air.

Oil‑repellent and water‑repellent media, coalesced liquid drains down to filter bowl for auto drain.

Low initial pressure drop, high dirt‑holding capacity, good resistance to compressor oil.

Matching O‑ring prevents air bypass and ensures filtration efficiency.

Post‑treatment consumable for clean compressed‑air.

Application Industries

Air compressor post‑treatment, spray painting, pneumatic systems, nitrogen generator, food & pharmaceutical industry.

Product Summary

030AA is high‑efficiency AA grade coalescing filter element with 0.01 μm rating, effectively removes oil mist and contaminants for clean compressed‑air.
