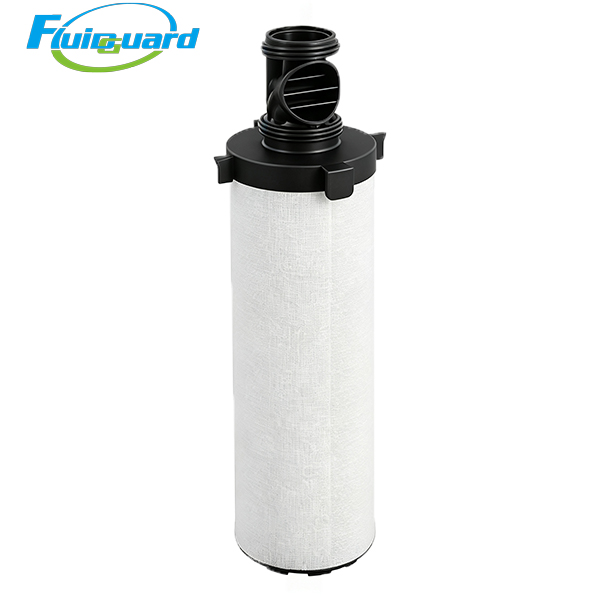

Coalescing Filters

Part No: P030AO

Filtration Accuracy: 1μm, Filtration Efficiency: 99.925%

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported micro‑glass fiber

Main Features

AO‑grade general‑purpose coalescing element, removes solid particles above 1μm, liquid water and oil‑mist aerosol, complies with ISO8573‑1 compressed‑air quality standardParker

Oil‑repellent & water‑repellent glass‑fiber media, low pressure drop and excellent air permeability to reduce air‑compressor energy consumption

Deep‑pleated filter media with high dirt‑holding capacity, anti‑fiber shedding, stable long‑term filtration performance

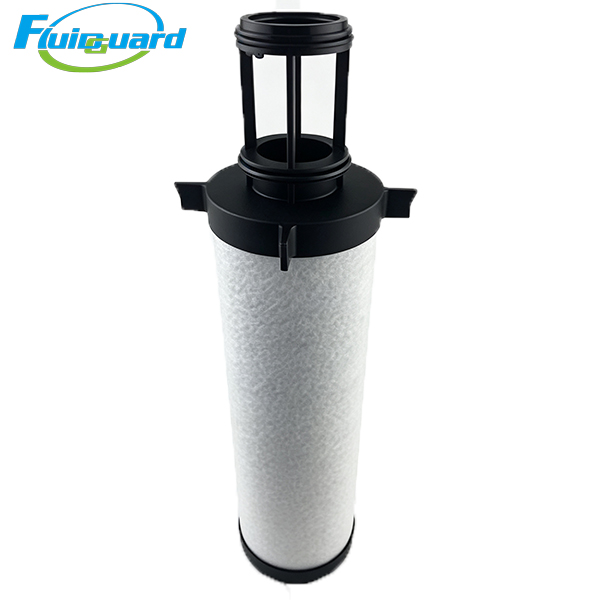

Serves as pre‑filter, protects downstream P030AA high‑precision element and air dryers to extend fine‑filter service life

Delivers medium‑clean air for general‑industry applications, also used as pre‑treatment for painting and pneumatic equipment

Application Industries

Air‑compressor post‑treatment system, pre‑filtration for painting & coating, automation pneumatic equipment, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

With 1μm filtration rating, it fits P030 / PX030 filter housing and removes particles, moisture and most oil mist to deliver compressed air with residual oil of 0.5ppm. Used as upstream pre‑protection filter, direct replacement for original filter element
