Coalescing Filters

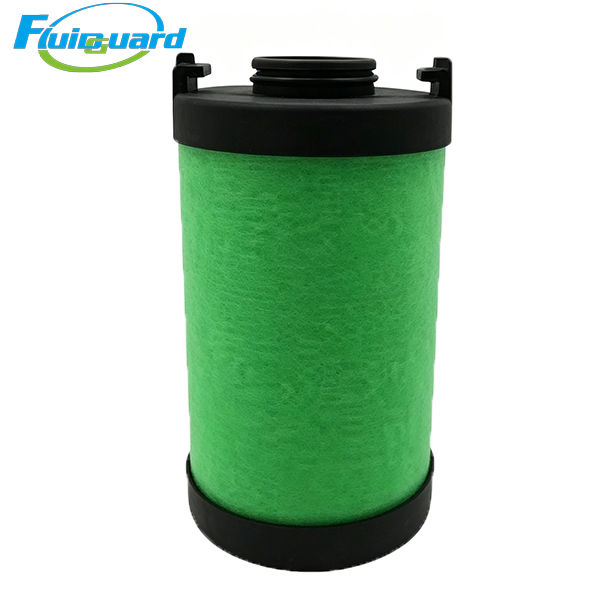

Part No: LFA100PF

Type: Compressed‑air particulate pre‑filter element

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 3 μm solid particle removal

Residual oil content: No coalescing oil removal function, dedicated for solid particle filtration

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 2.60 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently intercepts large‑size solid particles, pipeline rust and dust impurities in compressed air.

Optimized pleated structure provides large filtration area and maintains low pressure drop during long‑time continuous operation.

Reliable polyurethane sealing gaskets ensure tight sealing inside filter housing, prevent bypass‑air contamination.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting, pharmaceutical, chemical processing and other industrial sectors.
