Coalescing Filters

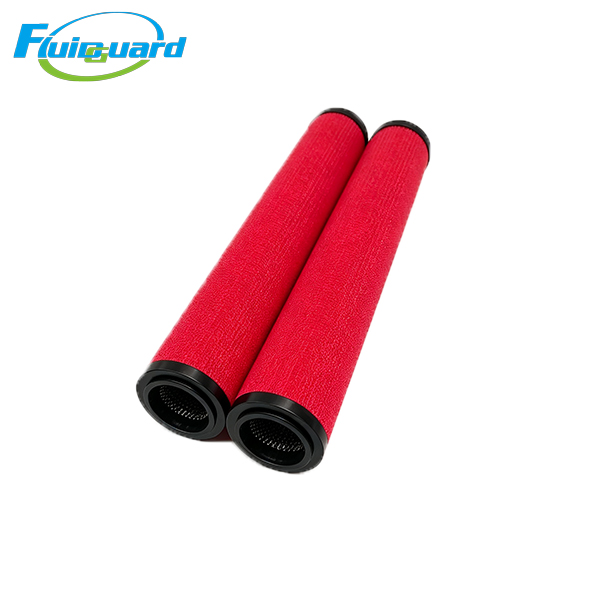

Part No: 92445907

Type: Compressed‑air high‑efficiency coalescing filter element

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 0.1 μm solid particle removal

Residual oil content: ≤0.1 ppm

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 0.71 kg

Main Features

High‑performance borosilicate glass‑fiber media achieves ultra‑high‑efficiency removal of fine solid particles, oil aerosols and liquid water droplets from compressed air.

Optimized pleated structure provides large filtration area and maintains low pressure drop during long‑time continuous operation.

Reliable polyurethane sealing gaskets ensure tight sealing inside filter housing, prevent bypass‑air contamination.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting, pharmaceutical, chemical processing and other industrial sectors.
