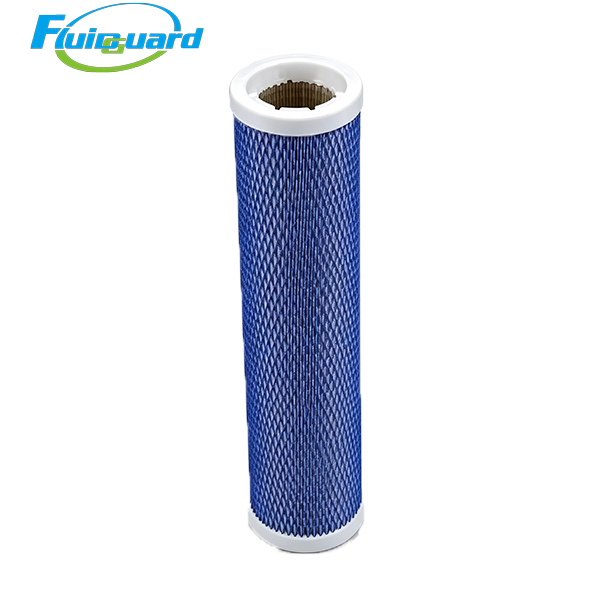

Model : JE-F0200
Type : Coalescing Filters
Replacement for : JE-F0200
With 0.01μm high precision, it removes ultra‑fine oil mist and fine contaminants to deliver clean compressed air with residual oil of 0.01ppm. Compatible with JE‑200 filter housing for industrial applications with strict oil‑content requirements, direct replacement for original filter element.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: JE‑F0200
Filtration Accuracy: 0.01μm
Residual Oil Aerosol: 0.01ppm
Rated Flow: 20m³/min
Max Working Pressure: 16bar
Working Temperature: ‑10℃ ~ +65℃
Dimension: Φ68×325mm
Service Life: 5000‑8000h
Filter Media: Multi‑layer imported composite glass fiber
Oil‑repellent & water‑repellent glass‑fiber media, low pressure drop and excellent air permeability to reduce air‑compressor energy consumption
Gradient multi‑layer structure, high dirt‑holding capacity, anti‑fiber shedding, stable long‑term filtration performance
Inner & outer metal support mesh reinforces filter media against air‑flow impact
Produce high‑clean air for painting, food‑pharmacy, electronics manufacturing and precision pneumatic equipment with strict air‑quality requirements
Application Industries
Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, shipbuilding
Product Summary
With 0.01μm high precision, it removes ultra‑fine oil mist and fine contaminants to deliver clean compressed air with residual oil of 0.01ppm. Compatible with JE‑200 filter housing for industrial applications with strict oil‑content requirements, direct replacement for original filter element.
