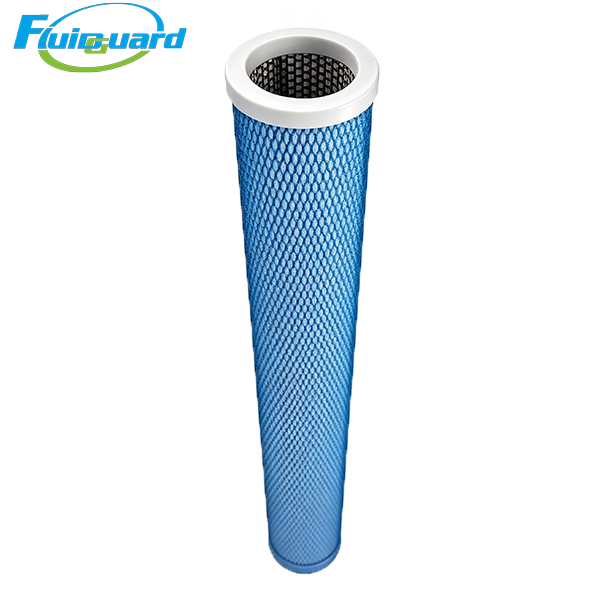

Coalescing Filters

Part No: JE‑C0200

Filtration Accuracy: 1μm

Residual Oil Aerosol: 0.5ppm

Rated Flow: 20m³/min

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ68×325mm

Service Life: 5000‑8000h

Filter Media: Imported composite glass fiber

C‑grade general‑purpose coalescing element, removes solid particles, liquid water and oil‑mist aerosol from compressed air

Oil‑repellent & water‑repellent glass‑fiber media, low pressure drop and excellent air permeability to reduce air‑compressor energy consumption

Multi‑layer composite structure, high dirt‑holding capacity, anti‑fiber shedding, stable long‑term filtration performance

Inner & outer metal support mesh reinforces filter media against air‑flow impact

Serves as pre‑filter, protects downstream high‑precision elements, air dryers, painting systems and pneumatic valves against oil‑water contamination

Application Industries

Air‑compressor post‑treatment system, painting & coating, automation equipment, food packaging, general‑industry air supply, mining, shipbuilding, chemical industry

Product Summary

With 1μm filtration rating, it removes particles, moisture and oil mist in air‑compressor pipeline to deliver clean compressed air. Compatible with JE‑200 filter housing for various industrial working conditions, direct replacement for original filter element.
