Coalescing Filters

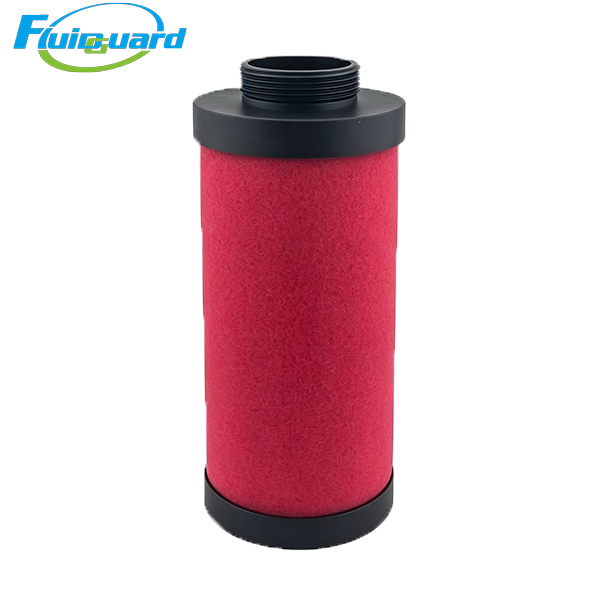

Part No: EFST25XN

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.995%

Residual Oil Aerosol: 0.01ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +80℃

Dimension: Φ42×53mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate composite glass fiber with separate drainage media layer

Main Features

XN‑grade high‑efficiency coalescing element, deeply removes sub‑micron oil‑mist aerosol, liquid water and fine solid particulates, complies with ISO12500‑3 test standard

Pleated depth media plus independent drainage composite structure, oil‑repellent & water‑repellent. Condensate liquid can drain rapidly to prevent liquid re‑entrainment into air flow

Gradient multi‑layer structure, high dirt‑holding capacity, anti‑fiber shedding, stable long‑term filtration performance

Inner & outer stainless‑steel support mesh reinforces filter media against air‑flow impact

Deliver high‑clean air for painting, food‑pharmacy, electronics manufacturing, laboratory and precision pneumatic equipment with strict air‑quality requirements

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, shipbuilding

Product Summary

With 0.01μm high precision, it fits EFST25 filter housing and deeply removes ultra‑fine oil‑mist contaminants to deliver clean compressed air with residual oil of 0.01ppm. Suitable for industrial applications with strict oil‑content requirements, direct replacement for original filter element
