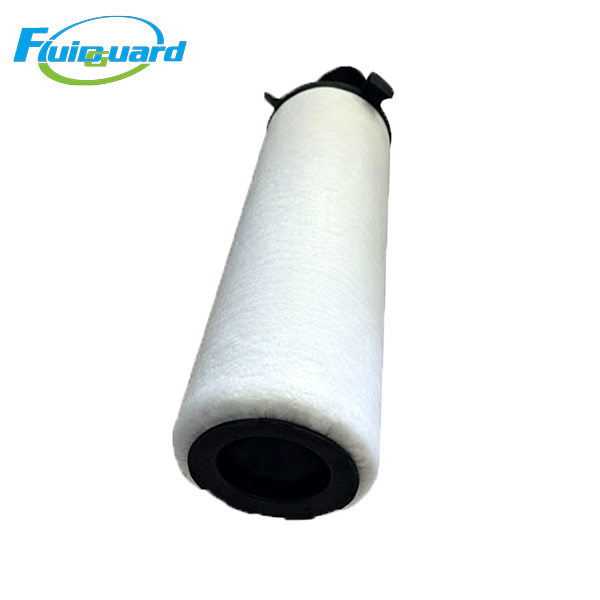

Coalescing Filters

Part No: CE0066GB

Filtration Accuracy: 1μm

Residual Oil Aerosol: 0.5ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate composite glass fiber

GB‑grade upstream coalescing element, removes solid particles above 1μm, liquid water droplets and coarse oil‑mist aerosol, complies with ISO8573‑1 compressed‑air quality standard

Oil‑repellent & water‑repellent glass‑fiber media, low pressure drop and excellent air permeability to reduce air‑compressor energy consumption

Gradient multi‑layer media with high dirt‑holding capacity, anti‑fiber shedding for stable long‑term operation

Traps rust, carbon powder and bulk condensate, reduce load for refrigerated and desiccant dryers

Application Industries

Air‑compressor post‑treatment system, pre‑filtration for painting & coating, automation pneumatic equipment, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

With 1μm filtration rating, it fits X066 filter housing and removes particles, condensate water and coarse oil mist as upstream pre‑treatment filter, direct replacement for original filter element
