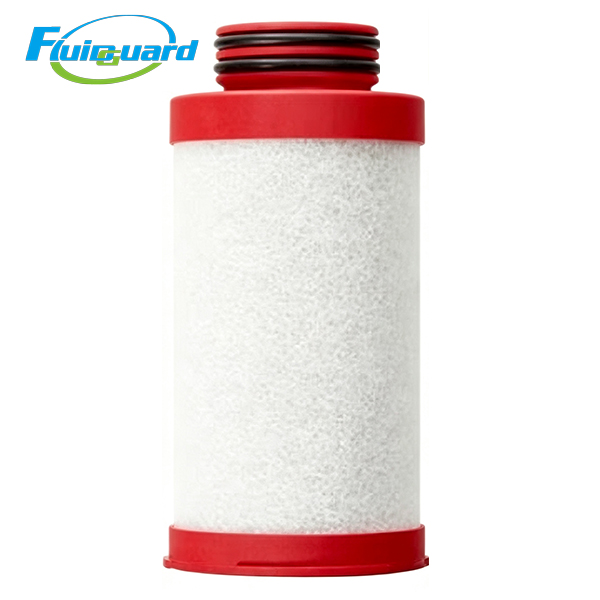

Coalescing Filters

Part No: E30612AC

Core Technical Specifications

Outlet Residual Oil Vapor Content: ≤0.003 ppm, fully complies with ISO 8573-1 Class 0 ultra-clean compressed air standard

Adsorption Efficiency: ≥99.9% for low-molecular oil vapor & organic volatile compounds

Internal Filter Media: High iodine value coconut shell activated carbon bed, front hydrophobic coalescing pre-foam, anti-carbon-powder barrier mesh

Flow & Dimension Parameter

Rated Air Flow: 70 SCFM

Continuous Operating Temperature: 2℃ ~ 66℃

Standard Service Life: Replace after 4,000 operating hours or 12 months, whichever comes first

Differential Pressure Replacement Threshold

Warning Alarm: ΔP＞0.045 MPa

Mandatory Shutdown Replacement: ΔP≥0.07 MPa

Initial Differential Pressure: ≤0.018 MPa

Key Product Advantages

Ultimate Deep Purification to Eliminate Invisible Gaseous Oil Vapor

Installed downstream of X25 high-efficiency coalescing filter, this black AC carbon cartridge captures gaseous oil vapor that glass fiber coalescing media cannot intercept. High-specific-surface-area coconut shell activated carbon fully adsorbs organic volatiles and oily odors, meeting strict zero oil-vapor requirements for automotive topcoat painting, semiconductor assembly, pharmaceutical and food-grade production.

Dual Anti-Leakage Structure Prevents Downstream Carbon Powder Contamination

Front hydrophobic foam intercepts residual tiny liquid oil droplets; built-in fine stainless steel baffle blocks fine carbon powder from flowing to production equipment and finished goods, eliminating black speck defects on product surfaces. Silicon-free version is optional for high-gloss painting production lines.

Large Carbon Filling Volume Extends Maintenance Intervals

Thick integrated carbon bed storage delays vapor saturation, reduces frequent replacement frequency and labor maintenance costs for medium & small central air compressor stations.

Hydrolysis & Temperature Resistant Stable Construction

Acid-alkali resistant activated carbon matched with stainless steel support frame; the medium will not pulverize under long-term humid compressed air operation, avoiding secondary pipeline contamination.

Working Principle

Dry low-oil compressed air discharged from X25 high-efficiency coalescing filter flows outside-in through the cartridge:

Front hydrophobic foam layer traps residual micro liquid oil droplets;

Air penetrates dense coconut shell activated carbon bed, oil vapor and organic gaseous pollutants are physically adsorbed by carbon micropores;

Clean, odor-free, oil-vapor-free compressed air flows out from the inner core to downstream precision production equipment.

Application Industries

Automotive electrostatic high-gloss painting workshops, multi-line laser cutting equipment, pharmaceutical sterile cleanrooms, food aseptic filling & packaging, PCB & electronic chip assembly, laboratory precision analytical instruments, small & medium factory centralized air compressor stations, solvent spraying production lines, medical breathing air pretreatment.
