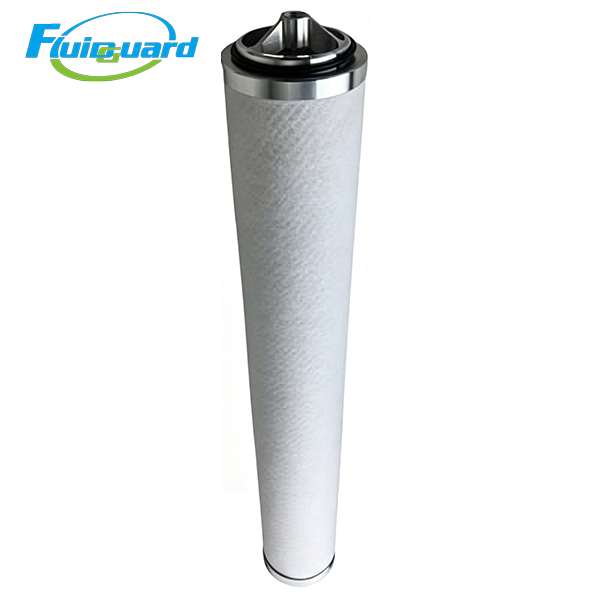

Coalescing Filters

Part No: DD780F

Filter Media: High‑efficiency borosilicate glass fiber

Filtration Rating: 1 μm solid particle removal

Residual oil content: ≤1 ppm

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 2.35 kg

Main Features

High‑performance borosilicate glass‑fiber media efficiently removes solid particles, pipeline rust, dust, oil aerosols and liquid water droplets in compressed air.

Optimized deep‑pleated structure provides large filtration area and maintains low pressure drop during long‑time continuous operation.

Reliable polyurethane double‑seal gasket structure guarantees tight sealing inside filter housing, effectively prevents air bypass‑caused secondary contamination.

Excellent hydrophobic‑oleophobic property promotes liquid draining, reduces liquid re‑entrainment risk.

High dirt‑holding capacity extends service cycle and reduces replacement frequency.

Application Industries

Widely used in machinery manufacturing, food & beverage, electronics, painting workshops, chemical processing, pneumatic automation and other industrial sectors.
