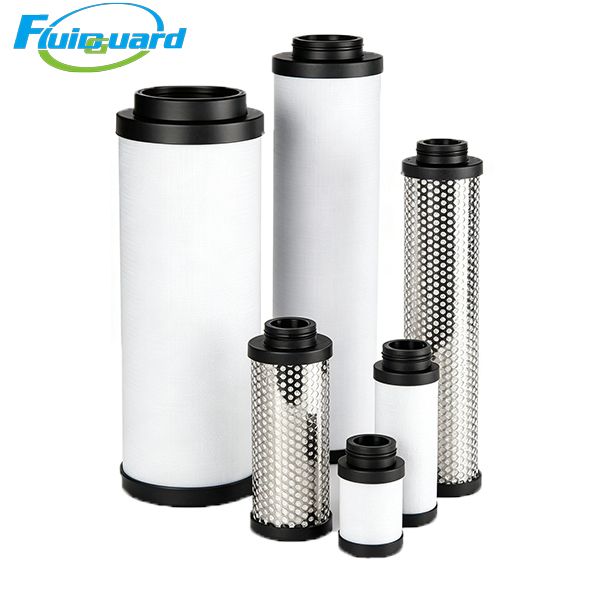

Coalescing Filters

Part No: MXP‑95‑558

Filter Media: High‑efficiency composite activated carbon material

Filtration Rating: 0.01 μm solid particle removal

Residual oil content: ≤0.003 mg/m³ at 20℃, dedicated for oil vapor and hydrocarbon removal

Max Operating Pressure: 16 bar

Max Working Temperature: 65 °C

Service Life: 6000‑8000 operating hours

Weight: 0.90 kg

Main Features

High‑performance activated carbon composite material efficiently adsorbs oil vapor, hydrocarbon components and oil‑based odor substances in compressed air.

Optimized internal flow‑channel structure realizes even air distribution, maintains low pressure drop under long‑time continuous operation.

Special carbon‑locking process effectively prevents carbon powder leakage and avoids secondary pollution of compressed‑air pipeline.

Reliable double‑seal‑ring structure ensures tight sealing inside filter housing, effectively prevents air bypass‑caused contamination.

Application Industries

Widely used in food & beverage, pharmaceutical, electronics production, laboratory, medical equipment and other industrial sectors.
