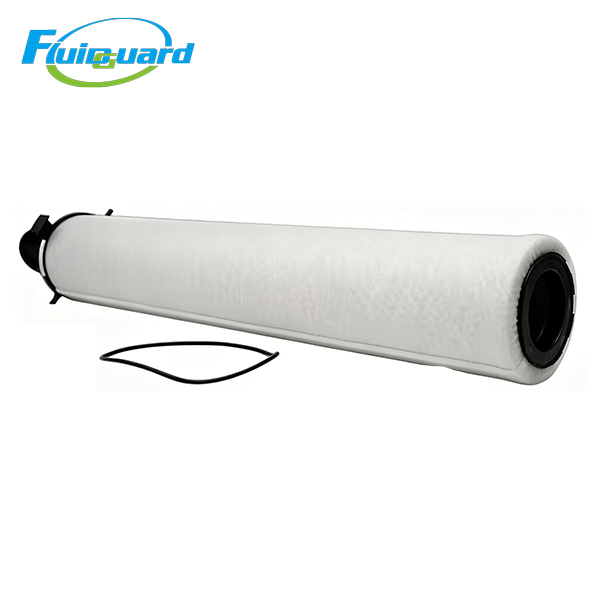

Coalescing Filters

Model: CE0372NC

Core Technical Specifications

Filter Grade: High-efficiency coalescing grade

Filtration Precision: 0.01 μm micro oil mist & ultra-fine solid particles

Residual Oil Content: ≤0.01 ppm under rated operating flow

Filter Media: Multi-layer gradient borosilicate micro glass fiber composite

Overall Dimensions:

Total height: 753 mm

Outer diameter: 155 mm

Inner diameter: 83 mm

Max Working Pressure: 16 bar / 232 PSIG

Max Working Temperature: ≤80℃

Service Life: 4000–6000 working hours or 12 months

Key Product Features

Deep-stage ultra-precise oil mist removal

Captures submicron oil aerosol, condensed water droplets and micro dust after pre-filter, delivers ultra-clean compressed air for high-standard production processes.

Optimized low differential pressure drop structure

Multi-layer gradient pleated media provides large effective filtration area, keeps stable low airflow resistance during long continuous operation and cuts air compressor energy consumption.

Hydrophobic & oleophobic special coating

Fast separation and drainage of liquid oil and water, avoids premature clogging, greatly improves dirt & liquid holding capacity to lower maintenance frequency.

Thickened stainless steel inner support cage

Effectively prevents filter layer collapse and deformation under long-term high-flow industrial load.

Application & Industries

Suitable for scenarios requiring ultra-clean air: automotive painting, precision electronics, food & pharmaceutical manufacturing, laser cutting, laboratory instruments and high-precision pneumatic equipment.
