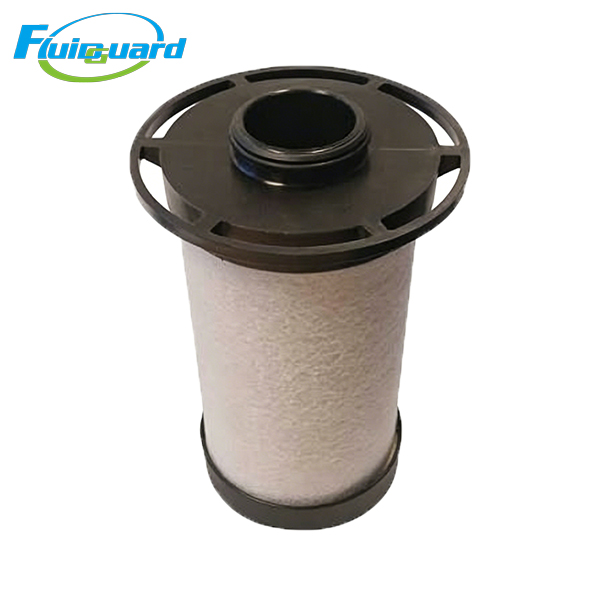

Coalescing Filters

Model: M0600P

Core Technical Parameters

Filter Media: Multi-layer gradient borosilicate micro glass fiber composite

Filtration Precision: 1μm solid particle interception

Residual Oil Content: ≤0.5 ppm

Max Working Pressure: 16 bar / 232 PSI

Max Working Temp: ≤80℃

Service Life: 3500–6000 working hours / 12 months

Rated Flow: Matched with 060 series large flow air pipeline

Product Features

Front-stage coarse filtration grade, intercept large solid dust, liquid water droplets and bulk oil droplets, protect rear AA high-precision filter

Low differential pressure drop design, reduce long-term power consumption of compressed air system

Hydrophobic & oleophobic treated filter medium, large dirt & liquid holding capacity, extend replacement cycle

Integrated black plastic double-port end cap, built-in sealing ring, perfect fit original filter housing without air leakage

Perforated stainless steel inner support cage, anti-deformation under continuous high-flow operation

Main Uses

Front protection coalescing filter for compressed air post-processing system, matched with AA high-efficiency filter, ACS activated carbon filter for graded purification.

Widely used in general machinery, packaging, textile, ordinary spraying, pneumatic tools and medium-precision industrial equipment.
