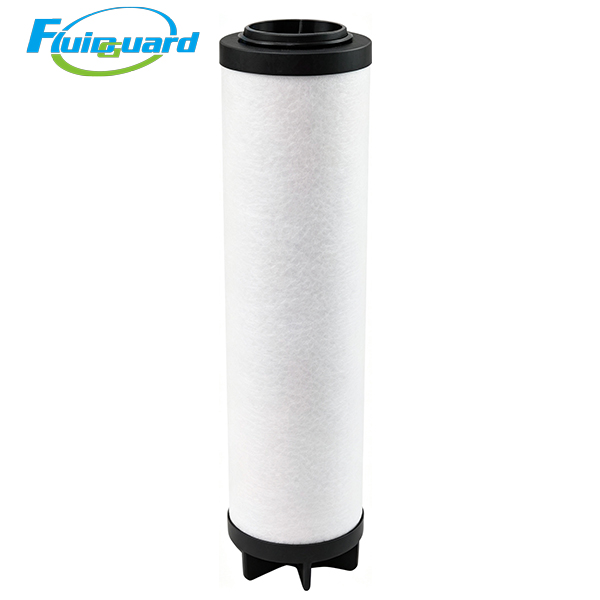

Coalescing Filters

Part No: 9055119

Core Technical Specifications

Filtration Precision: Captures all solid contaminants ≥5μm, including pipeline rust, oxide scale, metal shavings and dry workshop dust

Particle Filtration Efficiency: 99.999% removal efficiency for 5μm solid particles

Filter Media: Multi-layer gradient borosilicate glass fiber composite, outer thick non-woven fabric buffer layer for interception of large coarse dirt

Continuous Operating Temperature: 2°C ~ 66°C

Standard Replacement Cycle: Replace after 4,000 operating hours or 12 months, whichever comes first; extendable to 6,000–8,000 hours under low-dust environments

Initial Differential Pressure: ≤0.012 MPa

Sealing System: Reinforced black corrosion-resistant plastic end caps with integrated one-piece nitrile rubber full sealing gasket, zero air bypass leakage

Key Product Advantages

Thick deep-pleated gradient glass fiber matrix provides massive dirt storage volume, resisting rapid clogging in machining, forging, mining and dusty production workshops, effectively reducing unplanned production downtime caused by frequent filter replacement.

Ultra-Low Airflow Resistance for Energy Saving

Large-area deep-fold filter media optimizes internal airflow channels, maintaining stable low pressure drop under 24/7 full-load continuous operation, lowering extra power consumption of medium air compressor units and reducing long-term electricity expenditure.

Hydrolysis & Abrasion Resistant Fiber-Free Construction

Hydrolysis-proof borosilicate glass fiber paired with stainless steel support mesh eliminates fiber shedding under long-term humid compressed air operation, avoiding secondary pipeline contamination to downstream coalescing media, precision pneumatic valves and spraying equipment.

Working Principle

Air first passes through outer non-woven fabric buffer layer to intercept large coarse solid particles;

All solid particles larger than 5μm are trapped and stored inside gradient glass fiber media;

Application Industries

General metal machining workshops, metal forging plants, textile printing factories, packaging printing equipment, auto repair spray booths, medium factory centralized air compressor stations, construction machinery air supply systems, ordinary full-automatic pneumatic automation production lines, low-demand food processing equipment.
