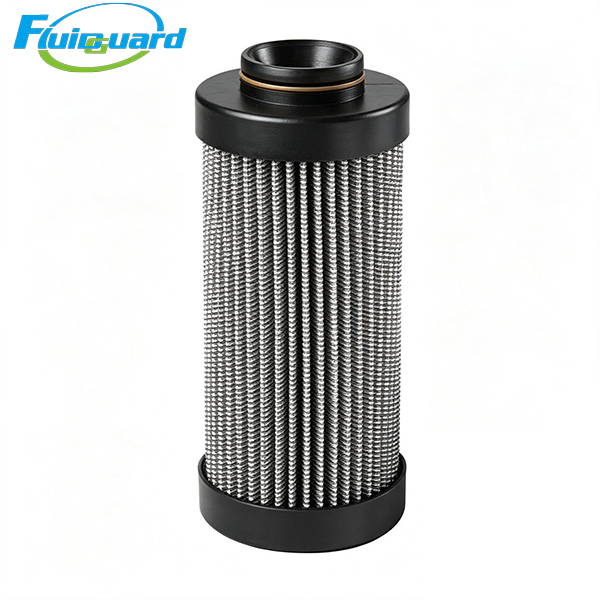

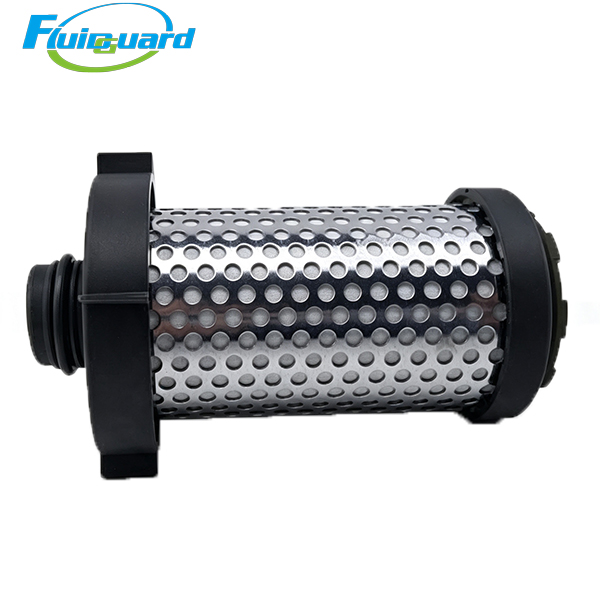

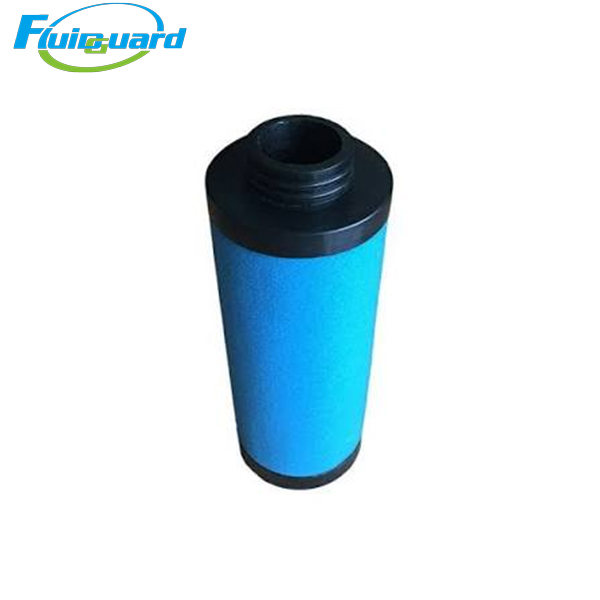

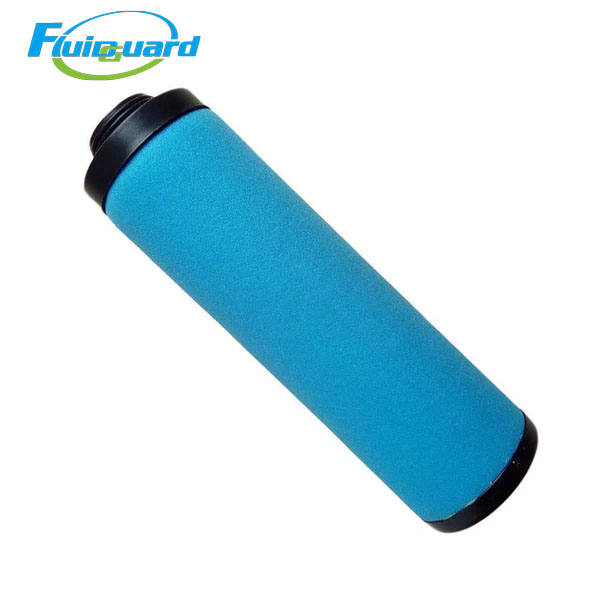

Coalescing Filters

Key Product Features

Imported high-performance glass fiber coalescing media

Adopts Germany HV proprietary borosilicate microfiber with dual hydrophobic & oleophobic coating. It thoroughly intercepts submicron trace oil mist and tiny water droplets after primary pre-filtration. Condensed liquid flows downwards via outer foam drainage layer to avoid secondary mist re-entrainment, greatly reducing the adsorption burden of downstream carbon filter and extending its service life.

Reinforced anti-deformation integrated structure

Inner and outer galvanized steel mesh tightly wraps filter media, preventing media collapse and airflow bypass under long-term stable compressed air flow. Buckle-type plastic end caps realize quick installation without extra tools, stable sealing under fluctuating temperature and pressure.

Ultra-low stable pressure drop energy-saving design

Optimized deep pleating maximizes effective filtration area, maintains minimal airflow resistance throughout the full service cycle, reduces extra power consumption of air compressors and cuts factory electricity operation costs.

Application Industries

Automotive high-gloss clear coat spraying, furniture & hardware coating workshops

Precision electronic assembly, optical lens processing production lines

Pharmaceutical sterile workshops, food & beverage aseptic filling

Laboratory high-purity gas supply, medical & dental miniature pneumatic equipment

General machinery automated pneumatic production lines

Brief Overview

As the core second-stage purification component, it eliminates submicron oil and water aerosols to deliver ultra-clean compressed air with residual oil controlled below 0.01ppm. With stable performance under 1–80°C and maximum 16 bar working pressure, it is the standard OEM replacement consumable for high-cleanliness industrial air treatment systems.
