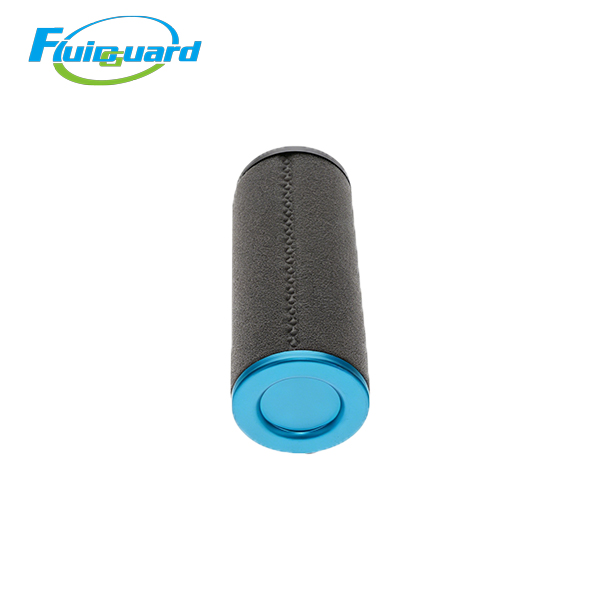

Coalescing Filters

Part Number: 2901300304

Filtration Performance:

Absolute solid particle retention ≥1 μm

Residual liquid oil mist ≤0.1 ppm

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.010 MPa

Replacement Alarm Differential Pressure: ≥0.06 MPa

Physical Size: Length 168 mm, Outer Diameter 61 mm, Net Weight 162 g

Application Scenarios

General mechanical processing plants, auto parts spray pretreatment, food packaging air supply, small lithium battery workshop, general CNC equipment air source, factory central pneumatic pipeline pretreatment, printing & textile machinery compressed air system

Product Features

Multi-gradient microglass depth media efficiently separate water and medium oil mist; outer hydrophobic foam self-drains condensate to avoid secondary re-entrainment of liquid pollutants

Integrated one-piece urethane top cap with built-in O-ring seal, resistant to compressor oil and temperature fluctuation, no air leakage after installation

Reinforced internal support cage prevents media deformation under long-term airflow impact, stable low pressure drop throughout service cycle

Bayonet plug-in structure, tool-free quick replacement to cut production downtime

Product Description

DD grade filter only removes dry solid dust; this PD element intercepts most liquid water and medium oil mist, acting as a buffer protection layer for subsequent UD superfine filter and QD carbon filter. It greatly reduces pollutant concentration entering high-precision filtration stages, significantly extending the service life of expensive ultra-fine and carbon filter elements.
