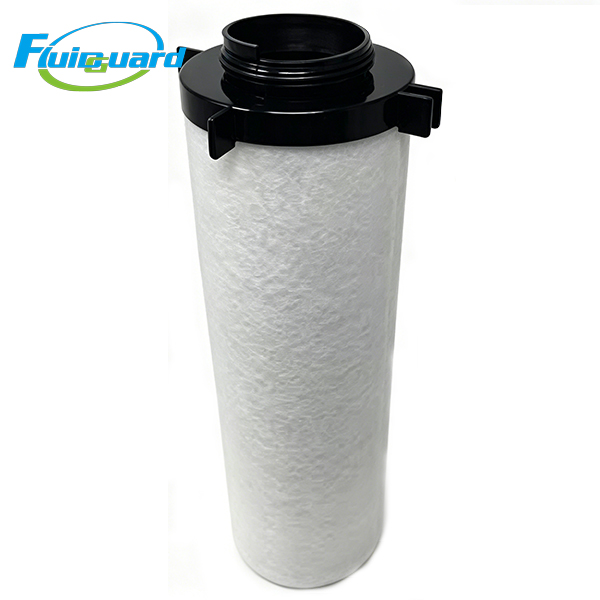

Coalescing Filters

Part No: 85565752

Type: Threaded inline cylindrical coalescing filter cartridge

Filter Media: High-efficiency glass fiber coalescing media Filtration Precision:

Filter Media: High-efficiency glass fiber coalescing media

Outlet Residual Oil Content: ≤0.008 ppm

Service Life: 4000–6000 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.015 MPa

Dimensions (mm)

Outer Diameter: 76

Overall Length: 258

Application Scenarios

Electronic component assembly, food & pharmaceutical production, laser cutting, precision instrumentation, plastic injection molding, painting workshops, laboratory ultra-clean compressed air supply, pneumatic automation production lines

Product Features

Multi-layer gradient glass fiber coalescing media with high oil mist holding capacity, efficiently intercepts micro oil aerosols, water vapor and solid particles, maintains stable ultra-low residual air oil content for full service cycle.

Compact cylindrical low-resistance structure with minimal initial pressure loss; differential pressure rises slowly during long-term continuous operation to reduce air system energy consumption.

Reinforced plastic end caps with anti-corrosion threaded joint, integrated drainage design for automatic discharge of condensed liquid, prevents liquid re-entrainment into compressed air.

Product Description

It adopts advanced multi-stage coalescing separation technology to capture 0.01μm micro oil droplets and moisture mixed in compressed air, limiting outlet residual oil down to 0.008ppm. Condensed oil and water gather at the filter bottom and drain out through the built-in liquid channel, avoiding secondary contamination of clean air.

It provides high-purity oil-free compressed air protection for downstream precision equipment, measuring instruments, painting and pharmaceutical production lines, greatly reducing failures and maintenance costs of post-processing purification equipment.
